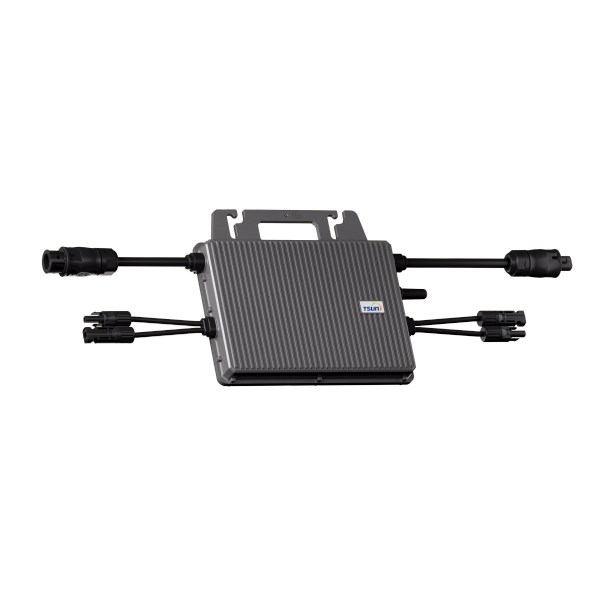

Mikroinverteris TSUN TSOL-MS800

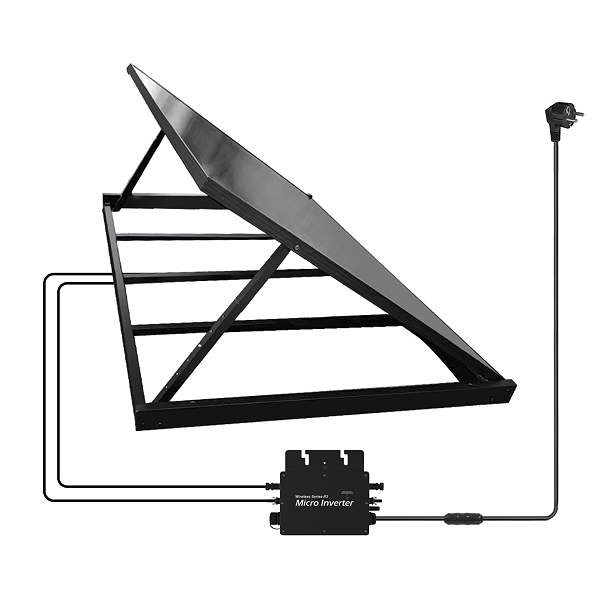

TSUN TSOL-MS800 is a high-efficiency microinverter that can be connected to TWO solar panels. They are usually installed on the roof, under the panels. The microinverter is very portable with only 3kg and is easy to install. It can also be combined with other TSUN microinverters, for optimal flexibility of your PV installation.

• DC input 14A, AC output 800W.

• Individual optimization, separate dedicated MPPT for each panel.

• New topology degisn with peak efficiency up to 96.7%.

• Plug and Play installation, Easy to install.

• Max. DC voltage 60V. No threat for high DC voltage.

• Integrated LoM protection function. Ensure the safety of power grid.

• Die casting design and glue filling technology. Better thermal disspation.

• Guaranteed quality with standard 12 years warranty.

• Allow sale if not in stock
  Yes
• Delivery up to working days
  5
• European efficiency percent
  96.3
• Input voltage range V
  16 - 60
• Inverter type
  Microinverter
• Item size LxWxH mm
  250 x 170 x 28
• Item weight kg
  3
• Manufacturer
  TSUN
• Max efficiency percent
  96.7
• Max input current A
  14 / 14
• Max input power kW
  n/a
• Max input voltage V
  60
• Model
  TSOL-MS800
• MPPT number
  2
• Operating temperature C
  -40 / +65
• Output power kW
  0.8
• Phase number
  1
• Product type
  Inverter
• Protection degree
  IP67
• Warranty extension 10y
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  12

Gamintojo specifikacija
