Laikiklis Corab System WS-014NB (from 501W upto 600W)

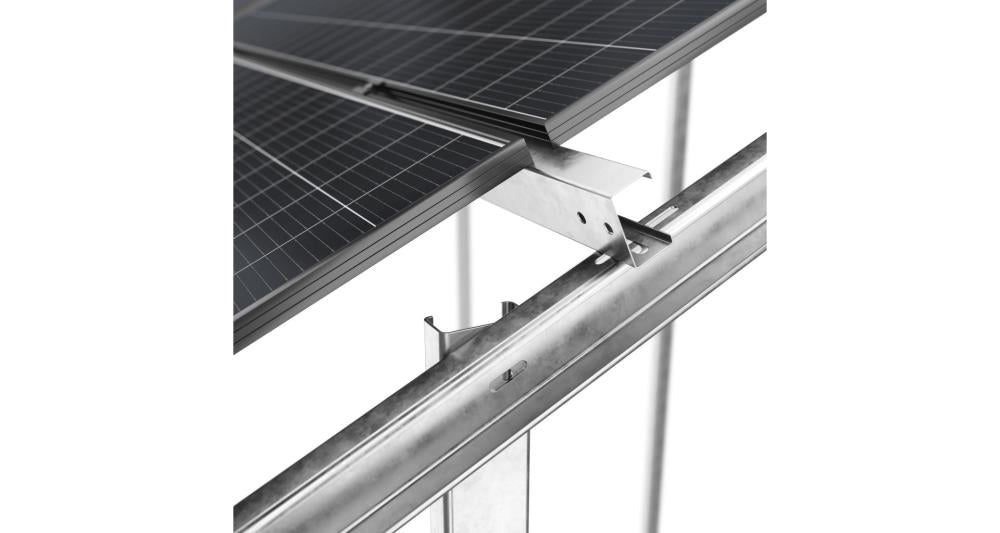

This is one side mounting system kit. Kit includes: 6 middle clamps, 4 end clamps, 10 screws for clamps with spring washers and hammer nuts, 1 front support, 1 rear support, 1 slanted beam, 5 horizontal beams, 9 screws with spring washers and nuts + 18 washers for mounting beams and supports.

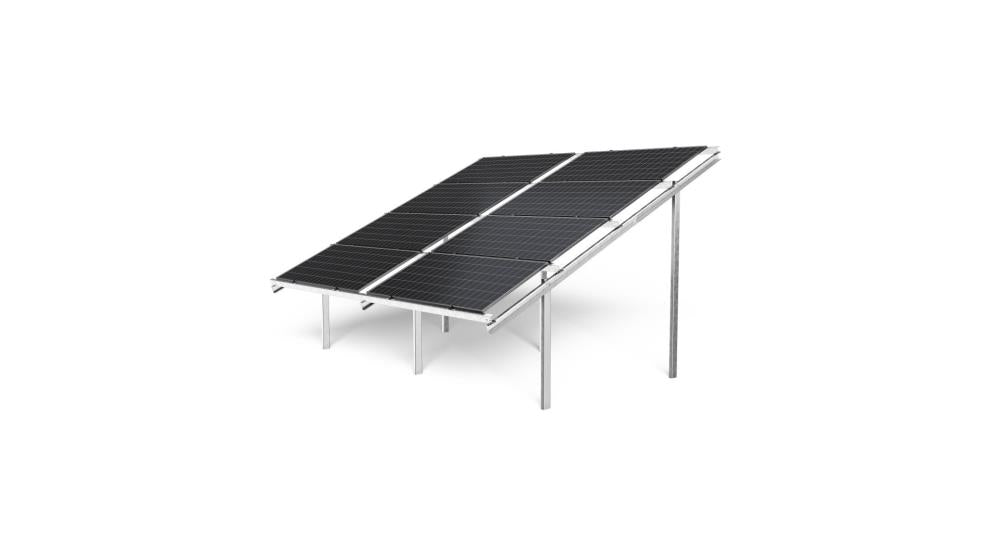

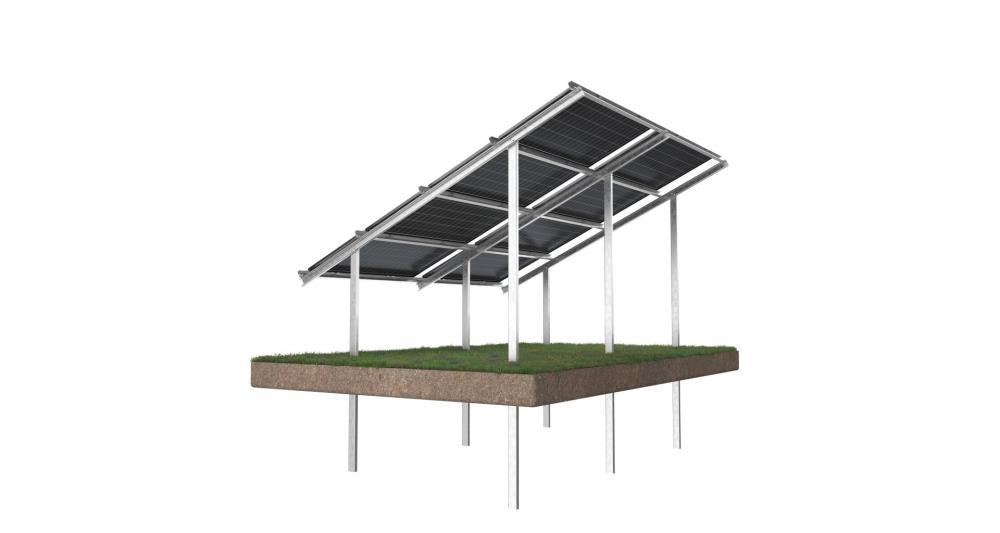

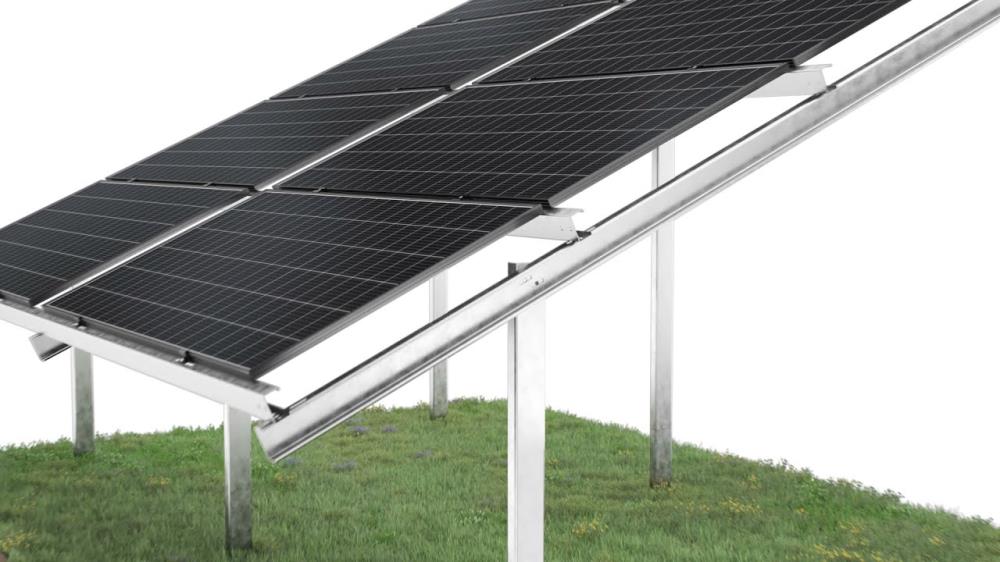

Corab WS-014NB system is a double support photovoltaic construction designed for the assembly of bifacial thin-layer modules. The solution is dedicated for large farm installations. The modules are installed in 4 rows horizontally. Slope angle of the construction is 25 degrees. The method of assembly is by screwing it into the ground with a pile driver. The system is made of extremely resistant to corrosion Magnelis. The use of this material allows for up to 25 years' anti-corrosion coating warranty.

Slide in option - No

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• For modules from kW
  0.501
• For modules upto kW
  0.6
• For modules width upto mm
  n/a
• Installation
  Rammed into the ground
• Layout
  Landscape
• Manufacturer
  Corab
• Material
  Magnelis
• Model
  WS-014NB
• Modules per row
  4
• Module orientation
  n/a
• Product type
  Mounting bracket
• Surface type
  n/a
• System type
  Ground mounted
• Tilt angle degree
  10, 15, 20, 25
• Warranty years
  10
