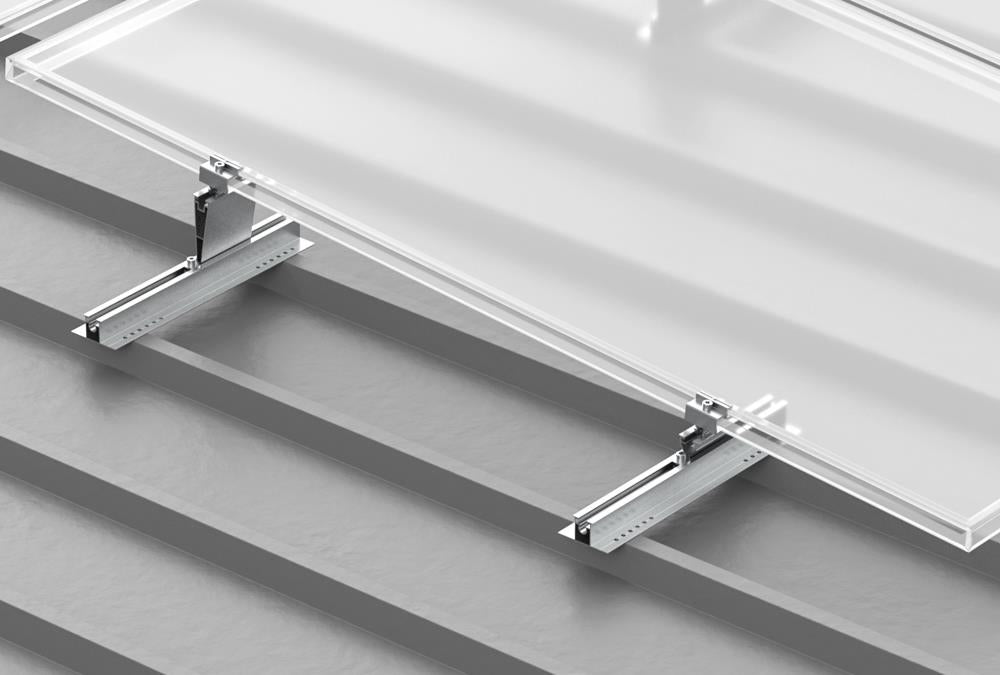

Laikiklis Alumero Trapezoidal Bridge Plus (extra tilt) AS 2.1

This is one side mounting system kit. Kit includes: 2 clamps, 2 screws for clamps, 8 screws for mounting the rails onto the roof, 2 rails, 1 front part and 1 back part.

Recommended for roofs with less than 10° tilt angle

Additional adapters give modules an extra 5° or 7° of tilt

Max, roof gradient of 20° including extra module tilt

Non-shearing attachment via special drilling screws

Pre-installed EPDM rubber for extra-reliable seal between

Roof surface and trapezoidal bridge

Horizontal and vertical module mounting

Lightweight and sturdy due to use of aluminium

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• For modules from kW
  n/a
• For modules upto kW
  n/a
• For modules width upto mm
  n/a
• Installation
  Invasive
• Layout
  Landscape / Portrait
• Manufacturer
  Alumero
• Material
  Aluminium / Stainless steel
• Model
  Trapezoidal Bridge Plus AS 2.1
• Modules per row
  n/a
• Module orientation
  n/a
• Product type
  Mounting bracket
• Surface type
  Metal sheet roof
• System type
  Pitched roof
• Tilt angle degree
  extra 5° or 7° of tilt
• Warranty years
  10
