Kaupiklis Dyness Tower 3,55kWh

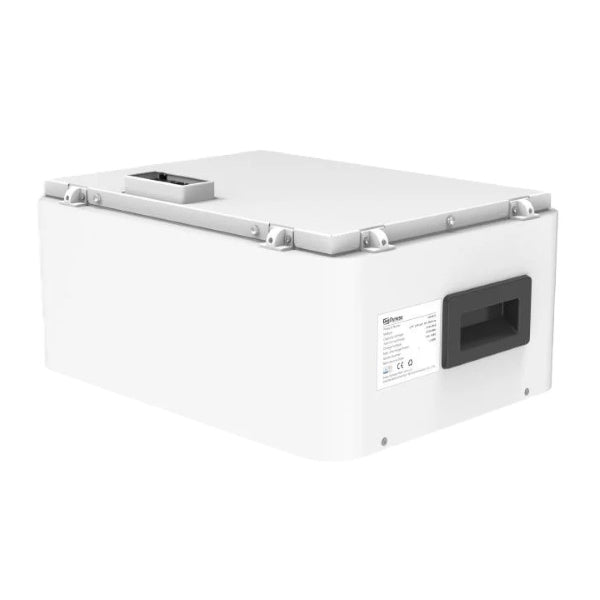

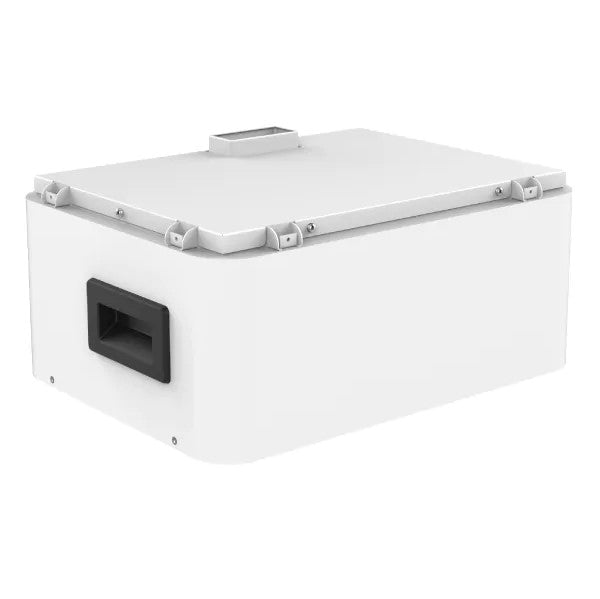

Dyness Tower HV9637 High Voltage Battery Module

HV9637 battery modules and battery management system T9637-BMS are used to build modern DynessTower T7...T21 energy storage systems with a capacity from 7.1 kWh to 21.31 kWh.

Tower Series is tailor-made for large residential, as well as small commercial and industrial applications. Stackable design with self-adaptive modules, five energy choices of up to 21.31kWh with parallel connection available, advanced LiFePO4 technology, remote upgrade, high waterproof level and good cooling function. Can be used in both off-grid and hybrid setups.

• 3.55 kWh battery capacity.
• Smart Management (build-in WiFi). Real-time system monitoring, remote control, OTA updates.
• Self-adaption. Auto configuration.
• Easy Installation. Stackable design, wireless connection.
• High Protection Level. Indoor & outdoor installations.
• Wide Compatibility. Matching with leading inverters.
• Flexible Expansion. Max. 12 towers can be connected in parallel (7.1 kWh to approx. 255.72 kWh capacity).

• Allow sale if not in stock
  Yes
• Battery type
  LiFePO4
• Cycle life
  6000
• Delivery up to working days
  10
• Item size LxWxH mm
  504 x 380 x 200
• Item weight kg
  41
• Manufacturer
  Dyness
• Max charge power kW
  n/a
• Max discharge power kW
  n/a
• Model
  HV9637
• Nominal capacity Ah
  37
• Nominal charge power kW
  n/a
• Product type
  Energy storage
• Scalable
  n/a
• Total energy kWh
  3.55
• Usable energy 90 percent DOD kWh
  3.3725 (95% DOD)
• Warranty years
  10

Gamintojo specifikacija
