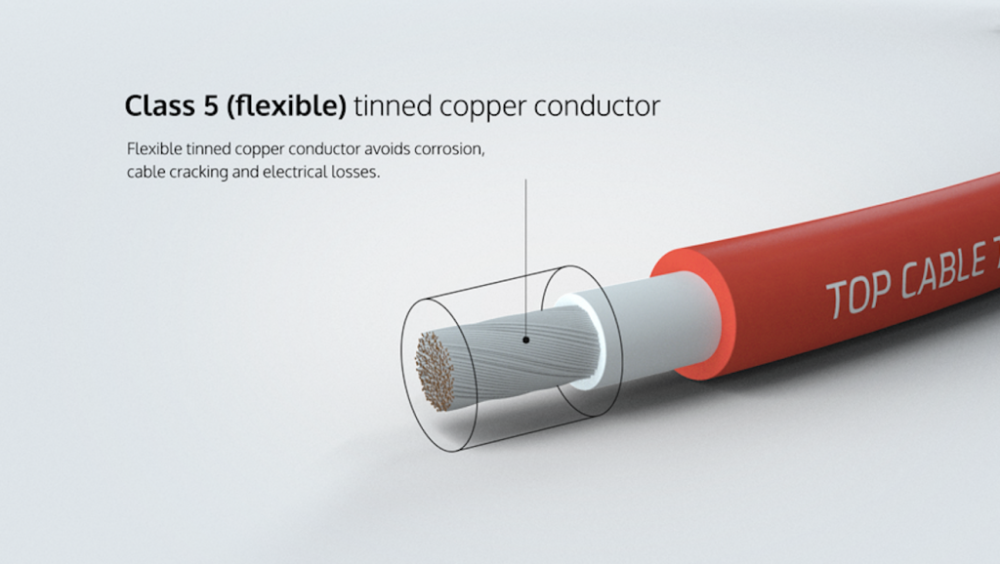

The Topsolar PV H1Z2Z2-K cable, which is TU?V certified according to IEC 62930 and EN 50618, is suitable for both fixed and mobile solar installations (solar farms, rooftop solar installations and floating plants). It is a highly flexible cable compatible with all major connectors and specially designed for the connection of photovoltaic panels. This versatile single-conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations.
Electrical performance: LOW VOLTAGE 1,5/1,5 1kV · (1,8) kV DC. 1,0/1,0 kV · (U0/U).

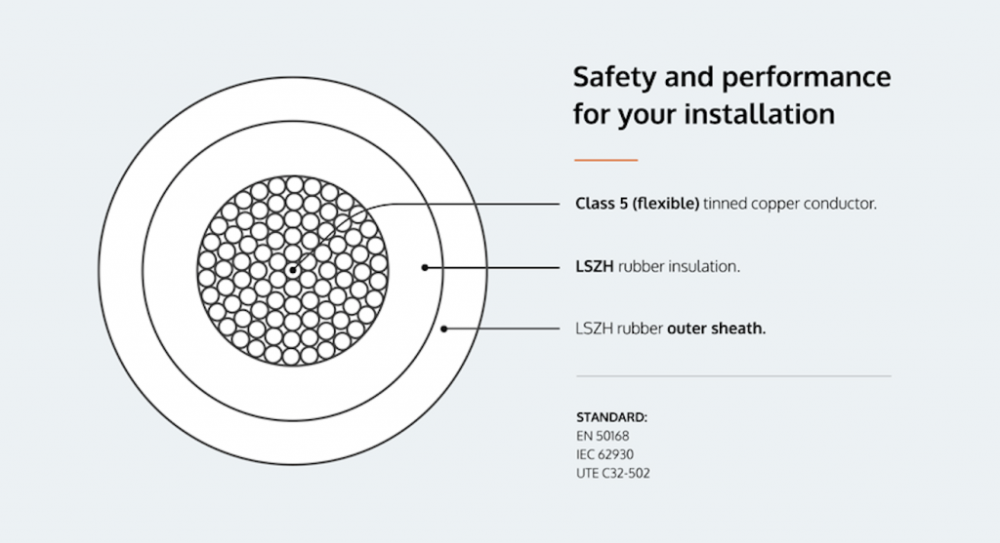

Standard: EN 50618/ IEC 62930 / UTE C 32-502.
Approvals: TÜV / RETIE / CE / RoHS.

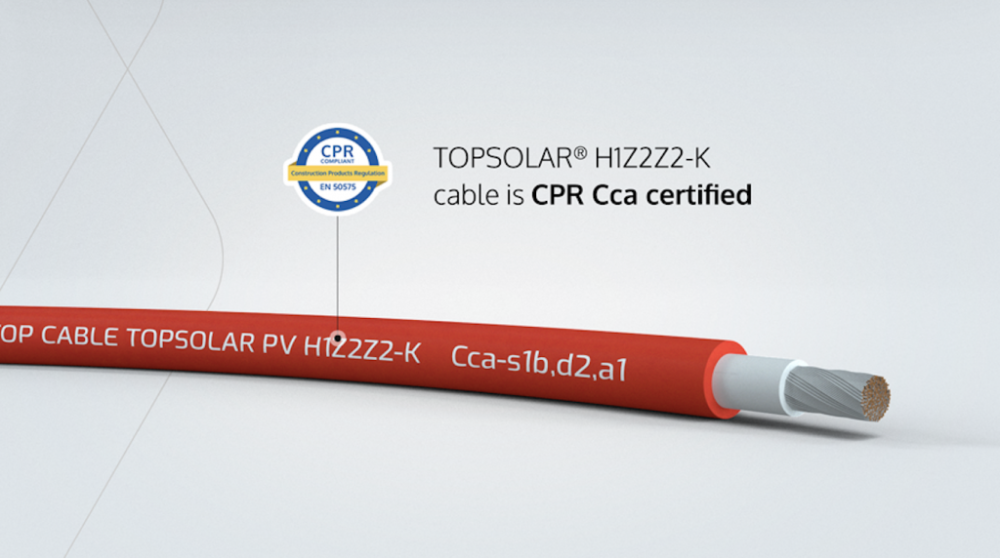

CPR Construction Product Regulation: Cca -s1b, d2, a1.
Thermal performance: Max. service temperature 120°C, Max. short-circuit temperature 250°C (max. 5 s), Min. service temperature -40°C (fixed and protected installations).
Fire performance: Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1, LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1, Low smoke emission based on UNE-EN 61034 and IEC 61034: Light transmittance > 60%, Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2, Reaction to fire CPR: Cca -s1b, d2, a1, according to EN 50575.
Mechanical performance: Minimum bending radius: x5 cable diameter, Impact resistance: AG2 Medium severity.
Chemical performance: Chemical & Oil resistance: Excellent, Grease & mineral oils resistance: Excellent, Ozone resistant based on EN 50618, UV Resistant based on EN 50618.
Water performance: Water presence: AD8 submerged.
Estimated Lifetime: 30 years based on EN 50618.
Other: Meter by meter marking, Optional: rodent-proof and termite-proof.
Installation conditions: Open Air, Buried, In conduit.
Applications: Solar PV installations.
-
-
Allow sale if not in stockYes
-
ColourBlack
-
Delivery up to working days2
-
Diameter mm1x6
-
Item size LxWxH mm400 x 270 x 270
-
Item weight kg44.05
-
ManufacturerTop Cable
-

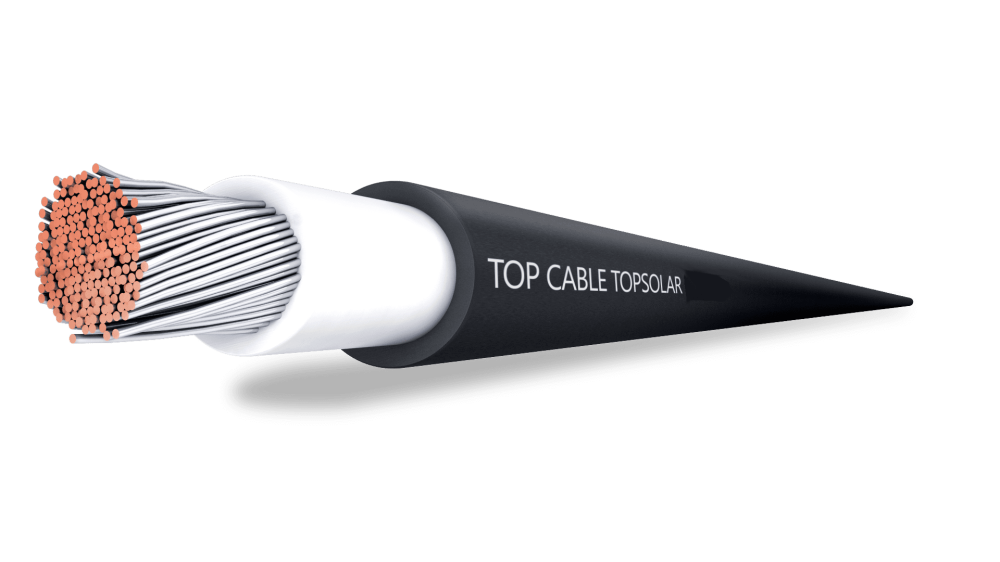

ModelTOPSOLAR H1Z2Z2-K
-
Product typeCable
-
Warranty years5
-
