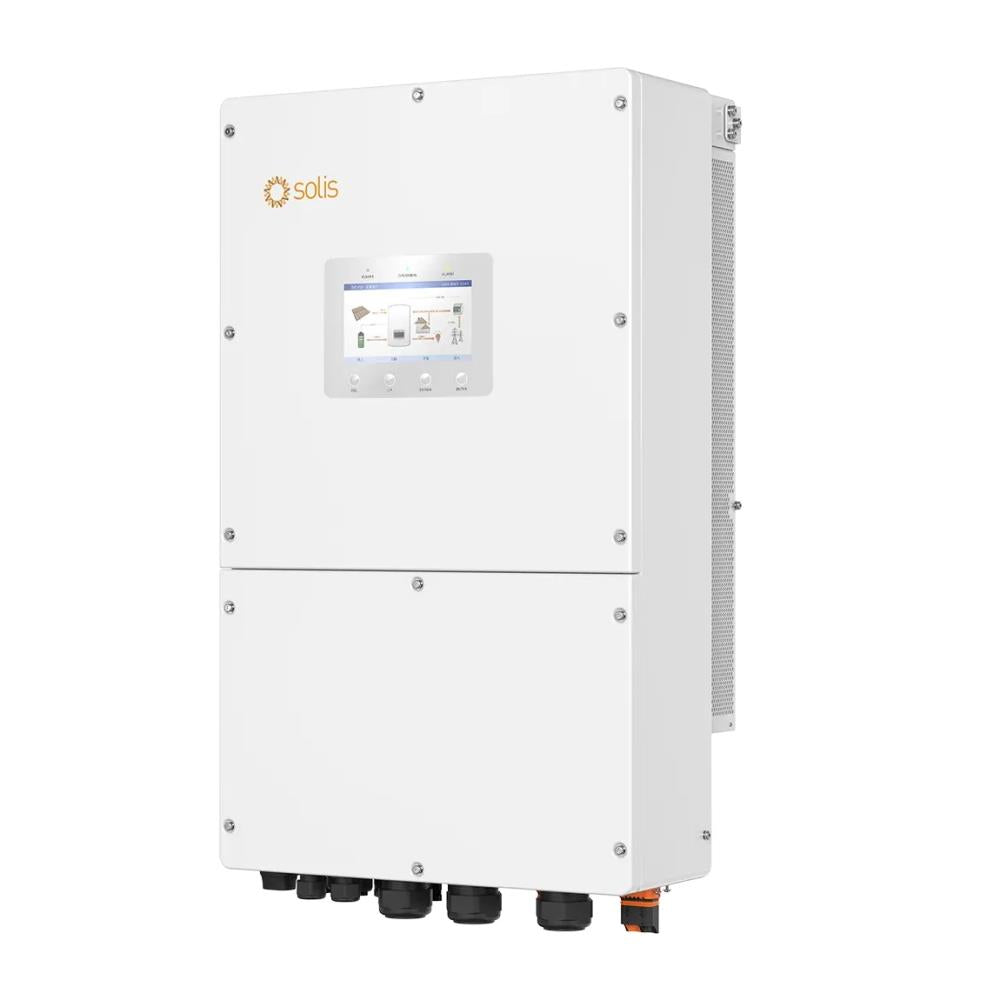

Inverteris Solis S6-EH3P50K-H

Solis Three Phase High Voltage Energy Storage Inverter

Experience Uninterrupted Power with Solis Energy Storage Inverters

S6-EH3P(30-50)K-H series three-phase energy storage inverter, suitable for commercial PV energy storage systems. This series of products support independent generator port and parallel operation of multiple products; With 4 MPPT, and 40A/MPPT current input capacity, can maximize the advantages of rooftop PV power, the product has independent generator port, high current charging and discharging capacity, and a variety of flexible load capacity: including UPS level switching, adapt to three-phase unbalanced load and half-wave load, etc., make the energy supply is very reliable.

Smart Energy Management

• AI intelligently manages charging and discharging based on TOU (Time-of-Use) tariffs
• Adapt to third party VPP platform, frequency service provider

High Performance

• Supports 100% three-phase unbalanced output
• 200% PV input capacity to maximize solar energy utilization
• Max. 160% overload capability in off-grid mode
• Charging and discharging currents up to 140A
• Switching time < 10ms

Flexible & Scalable

• Compatible with mainstream lithium batteries
• Support Solis C&I battery solution
• Easily expand system capacity using parallel connections and AC coupling

Simple & Fast Configuration

• 7-inch LCD screen for an intuitive user experience
• Bluetooth app support for quick and easy setup

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• European efficiency percent
  97.4
• Input voltage range V
  150 - 850
• Inverter type
  Hybrid
• Item size LxWxH mm
  290 x 530 x 880
• Item weight kg
  73
• Manufacturer
  Solis
• Max efficiency percent
  97.8
• Max input current A
  4 x 40
• Max input power kW
  96
• Max input voltage V
  1000
• Model
  S6-EH3P50K-H
• MPPT number
  4
• Operating temperature C
  -25 / +60
• Output power kW
  50
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP66
• Warranty extension 10y
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  10

Gamintojo specifikacija
