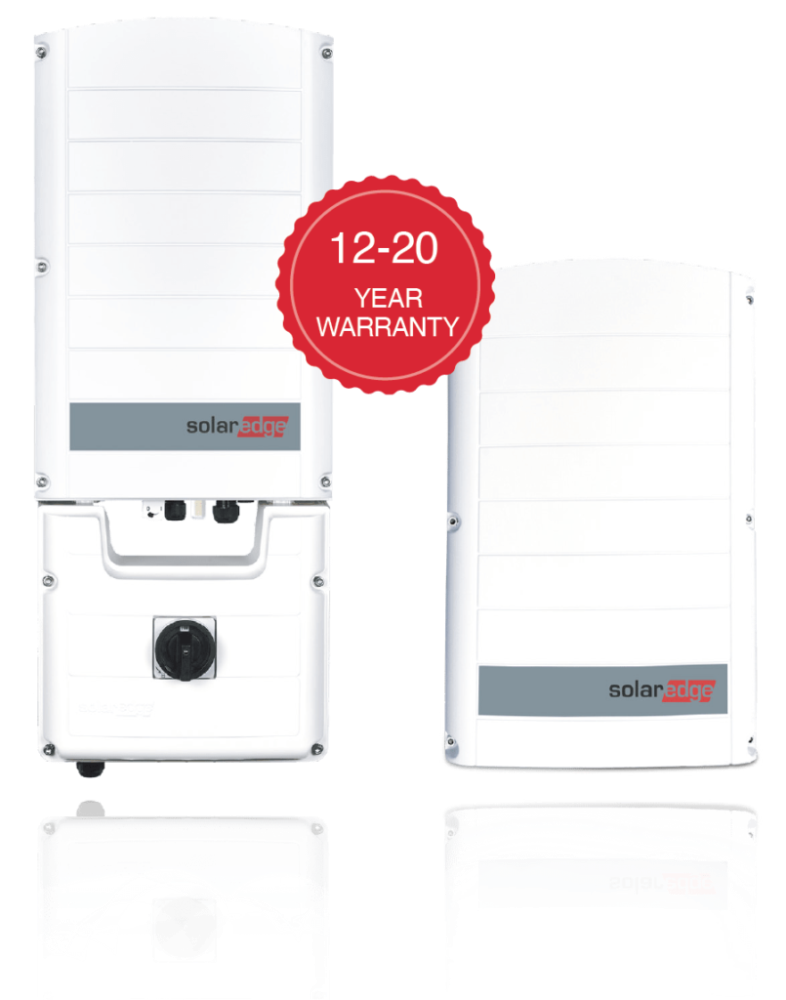

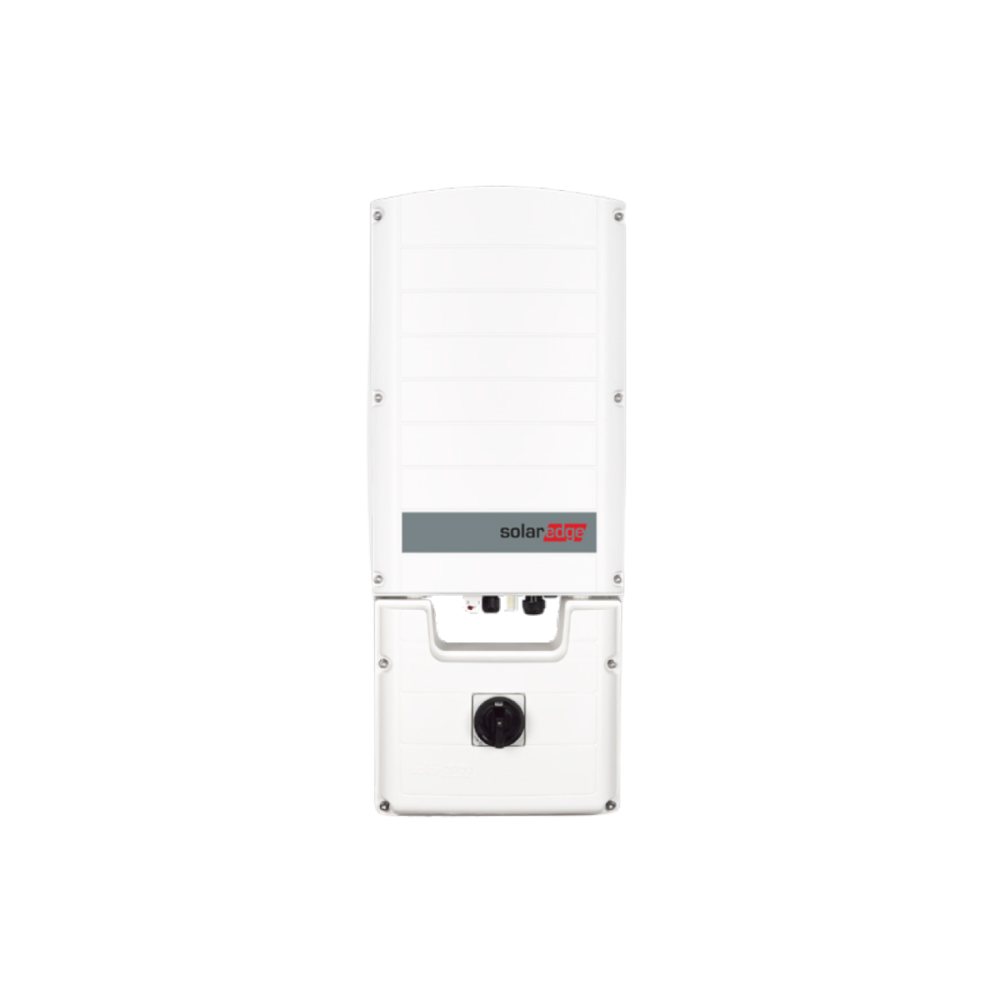

Inverteris SolarEdge SE30K SetApp

Specifically designed to work with power optimizers

Fixed voltage inverter for superior efficiency (98.3%) and longer strings

Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp

Small, lightest in its class, and easy to install

Integrated type 2 DC surge protection, to better withstand surges caused by lightning or other

events

Optional RS485 and type 2 AC surge protection

Built-in module-level monitoring with Ethernet, wireless or cellular communication for full system visibility

Advanced safety features - integrated arc fault protection and optional rapid shutdown

IP65 for outdoor and indoor installations

Optional integrated DC Safety Unit - eliminates the need for external DC isolators

Future-proofed for SolarEdge energy storage solutions

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• European efficiency percent
  98
• Input voltage range V
  680 - 1000
• Inverter type
  Standard
• Item size LxWxH mm
  550 x 317 x 273 / w/Safety Unit: 836 x 317 x 300
• Item weight kg
  32 / w/Safety Unit: 36.5 (DC MC4)
• Manufacturer
  SolarEdge
• Max efficiency percent
  98.3
• Max input current A
  43.5
• Max input power kW
  45
• Max input voltage V
  1000
• Model
  SE30K SetApp
• MPPT number
  0
• Operating temperature C
  -40 / +60
• Output power kW
  29.99
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 10y
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  12 (optional up to 20)
