Inverteris Sofar HYD-20K-T1

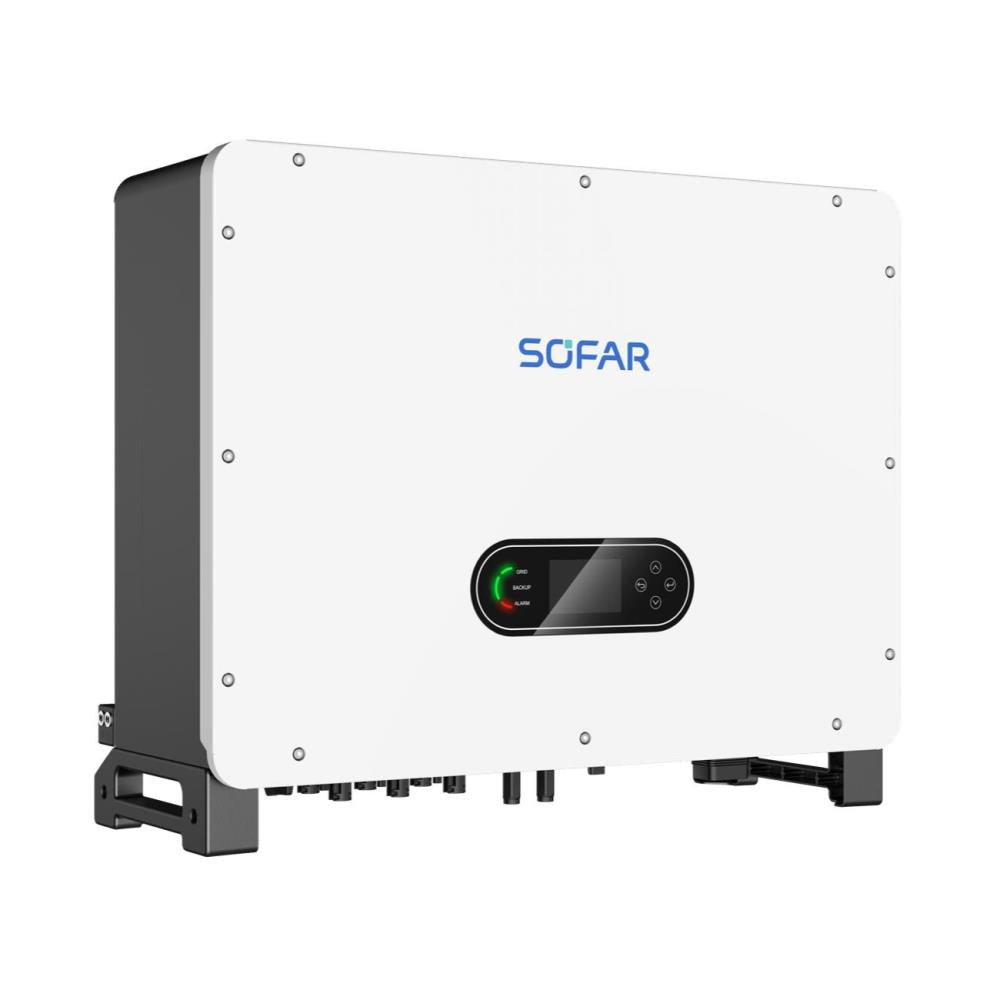

Sofar HYD-20K-T1 Three-phase Hybrid Inverter

Simplicity

• Light weight and convenient transportation
• LCD and App for easy commissioning

Flexibility

• Multiple inverters in parallel connection
• Supports intelligent control of non critical loads

Safety

• IP66 protection rating
• DC SPD type I+II, AC SPD type II
• AI based AFCI protection

Robustness

• Maximum 200% PV input, and 40A per MPPT
• Support 100% unbalanced loads
• 150% overload capability for 10 seconds
• Integration of generators to extend backup duration

• Allow sale if not in stock
  Yes
• Delivery up to working days
  20
• European efficiency percent
  97.5
• Input voltage range V
  160 - 950
• Inverter type
  Hybrid
• Item size LxWxH mm
  680 x 525 x 325
• Item weight kg
  40
• Manufacturer
  Sofar Solar
• Max efficiency percent
  98.2
• Max input current A
  40 / 40 / 40
• Max input power kW
  40
• Max input voltage V
  1000
• Model
  HYD-20K-T1
• MPPT number
  3
• Operating temperature C
  -30 / +60
• Output power kW
  20
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP66
• Warranty extension 10y
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  10

Gamintojo specifikacija
