Elektriniai parametrai (pagal STC)
-
Three-Phase Energy Storage Integrated Inverter
Various operational modes for optimal perfomance
Up to 2 MPPTs, allowing a flexible configuration
Maximum two battery inputs

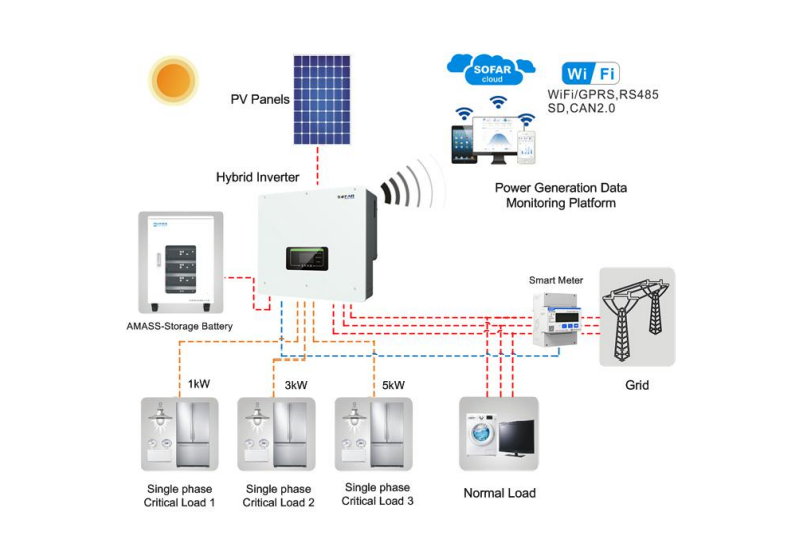

Off-grid output can be connected to unbalanced load, three-phase separate output is supported
Multiple parallel systems, more flexible system solutions
Fully digital operation, enabling higher control accuracy
Wi-Fi included

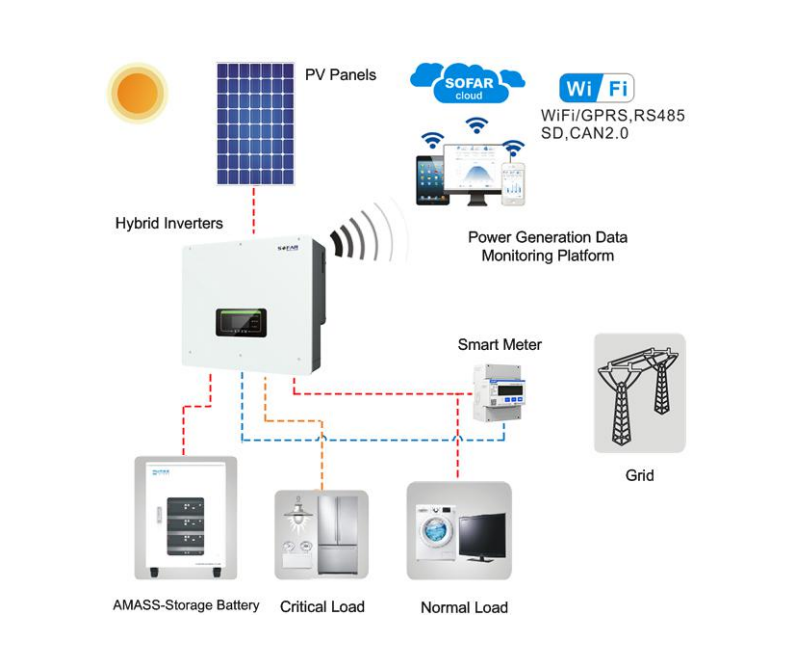

Three-phase hybrid Inverter - the perfect solution to enable energy storage in your PV installation with on and off-grid functions

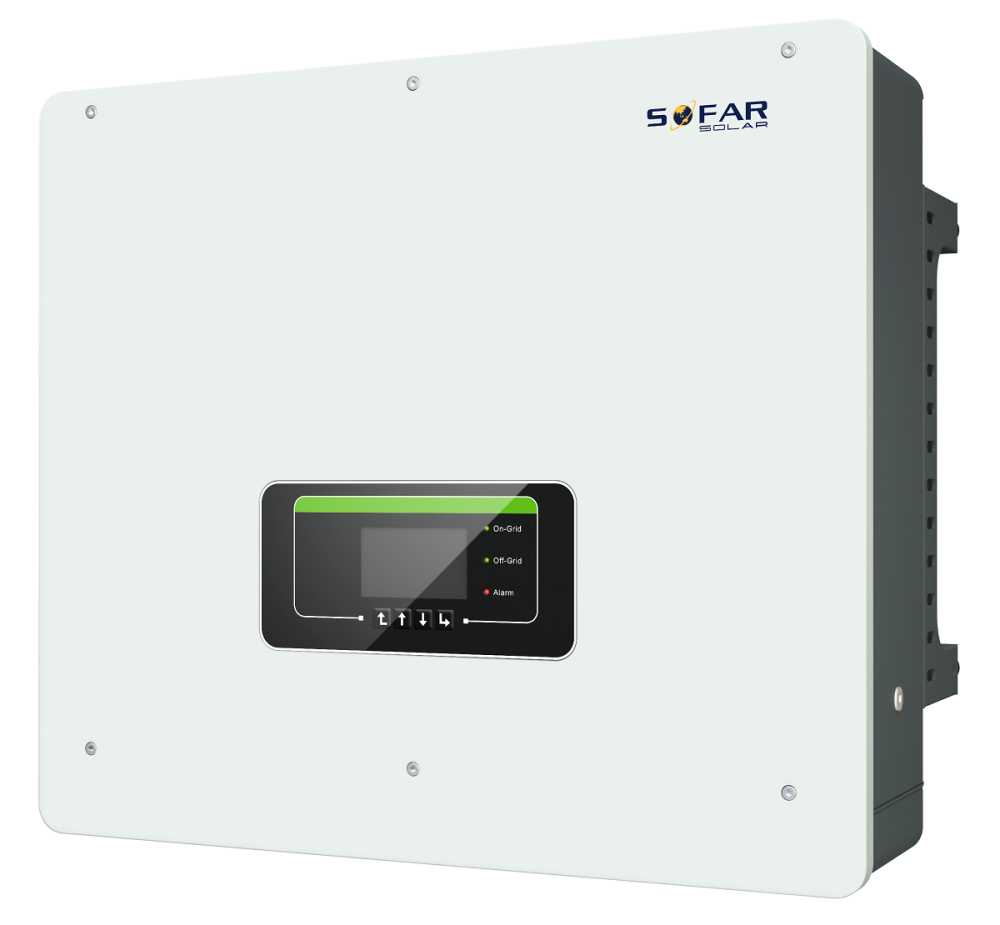

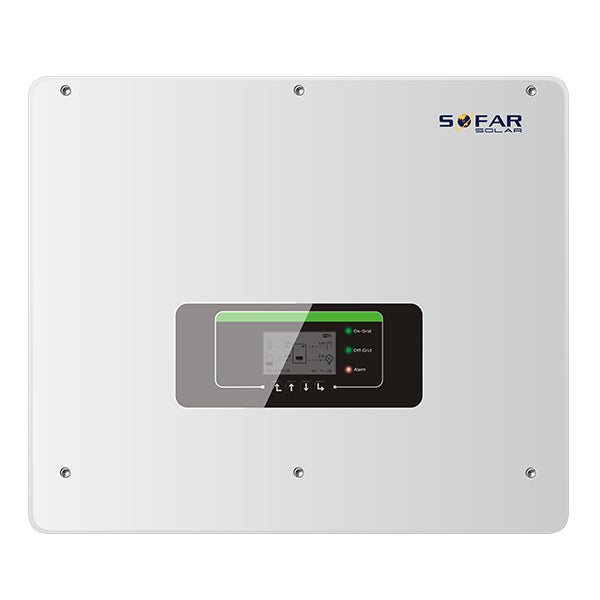

The HYD 5K–20KTL-3PH is a 3-phase, multi-talented hybrid inverter for solar and storage applications. During grid-outages, it can provide up to 20 kW unbalanced 3-phase emergency power supply (EPS) within 10 ms through its integrated EPS-port.
Two MPPTs and two independent battery ports (on the 10K to 20KTL models) allow multiple configurations of the battery capacity in steps of 2,5 kWh.
Up to 10 inverters can be connected in parallel on the EPS and AC-port, which makes this device ideal for micro-grid installations (on or off-grid).
The integrated energy management system has various user-friendly modes, optimizing the user experience, including an automatic self-use mode. The user can also set different time and/or date ranges or day of week rules.
All modes can be easily configured on the large LCD screen. Among others, this inverter is compatible with SOFAR's high-voltage energy storage systems: the GTX 3000-H and BTS battery system. A WiFi-stick is delivered with the inverter, to easily connect the inverter to the SOFAR View monitoring portal.
-
-
Allow sale if not in stockYes
-
Delivery up to working days10
-
European efficiency percent97.7
-
Input voltage range V180 - 960
-
Inverter typeHybrid
-
Item size LxWxH mm571.4 x 515 x 264.1
-
Item weight kg37
-
ManufacturerSofar Solar
-
Max efficiency percent98.2
-
Max input current A25 / 25
-
Max input power kW22.5
-
Max input voltage V1000
-
ModelHYD 15KTL-3PH
-
MPPT number2
-
Operating temperature C-30 / +60
-
Output power kW15
-
Phase number3
-
Product typeInverter
-
Protection degreeIP65
-
Warranty extension 10y
-
Warranty extension 15y
-
Warranty extension 20y
-
Warranty years5
-
