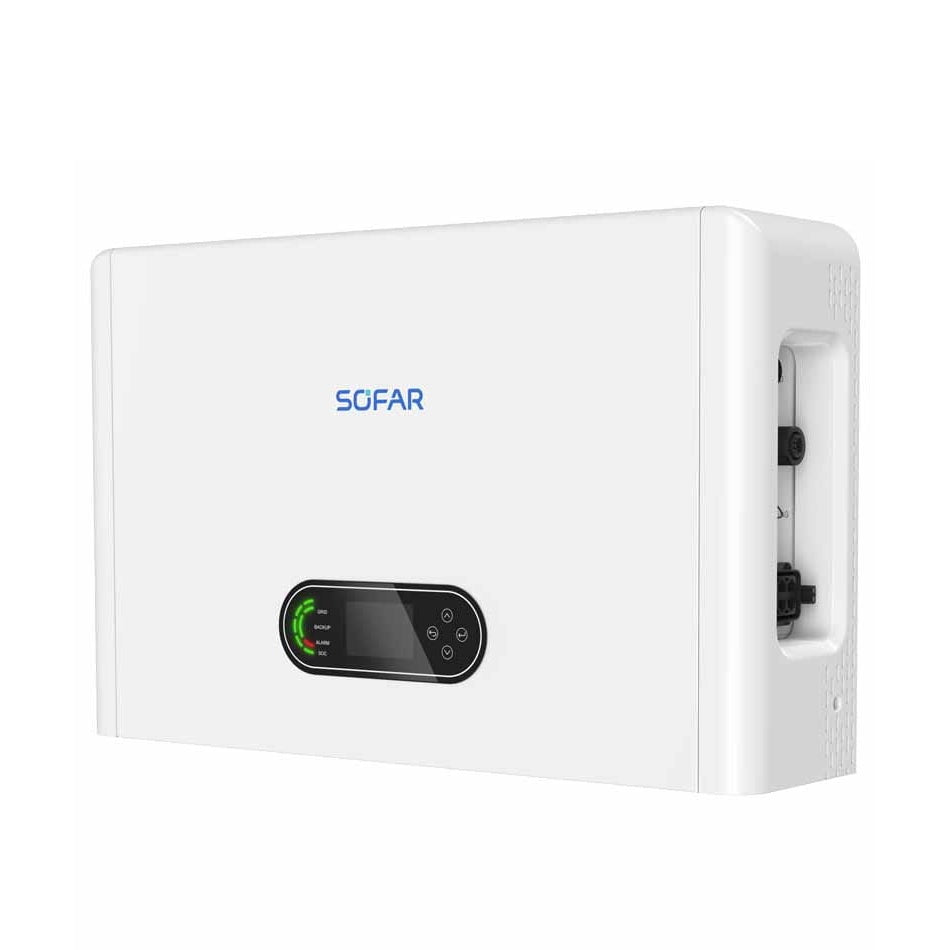

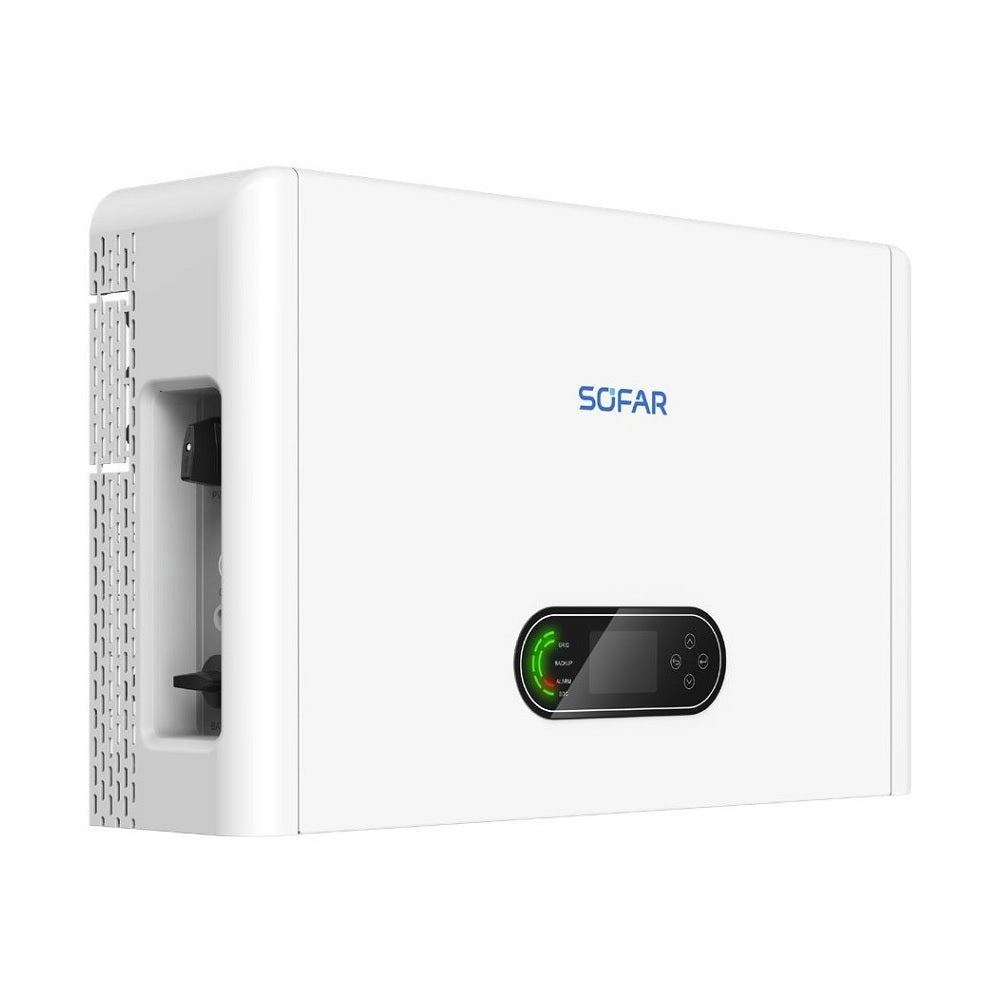

Inverteris Sofar ESI-6.5K-T1

Three-phase, Three MPPT Sofar ESI 6.5 kW Hybrid Inverter

ESI-5-12K-T1 is a three-phase hybrid inverter that can stack with the BTS 5K battery to create a flexible and efficient residential energy storage system. The product is easy to install and supports flexible expansion up to six battery units. With up to 3 MPPTs, AFCI, 20A input current per MPPT, the inverter is fully compatible with the high-power PV module. The inverter integrated multi-function EMS that maximizes high solar energy utilization. With IP66 protection, ESI-5-12K-T1 can be installed both indoors and outdoors. Its fanless design enables natural heat dissipation, making it a quiet and home-friendly solution.

User-friendly

• Easy installation, support both all-in-one and split installations
• Natural heat dissipation, no extra noise

Flexible applications

• Support 100% three-phase unbalanced loads
• Seamless switchover between on and off-grid (10ms)

Safe and reliable

• Up to 3MPPT with AFCI
• IP66 rated design

• Allow sale if not in stock
  Yes
• Delivery up to working days
  60
• European efficiency percent
  97.0
• Input voltage range V
  160 - 950
• Inverter type
  Hybrid
• Item size LxWxH mm
  708 x 170 x 440
• Item weight kg
  30
• Manufacturer
  Sofar Solar
• Max efficiency percent
  98.0
• Max input current A
  20 / 20 / 20
• Max input power kW
  13
• Max input voltage V
  1000
• Model
  ESI-6.5K-T1
• MPPT number
  3
• Operating temperature C
  -30 / +60
• Output power kW
  6.5
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP66
• Warranty extension 10y
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  10

Gamintojo specifikacija
