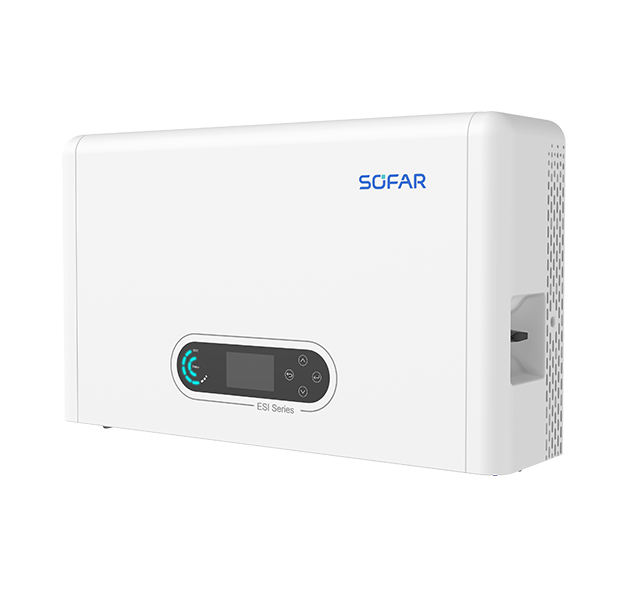

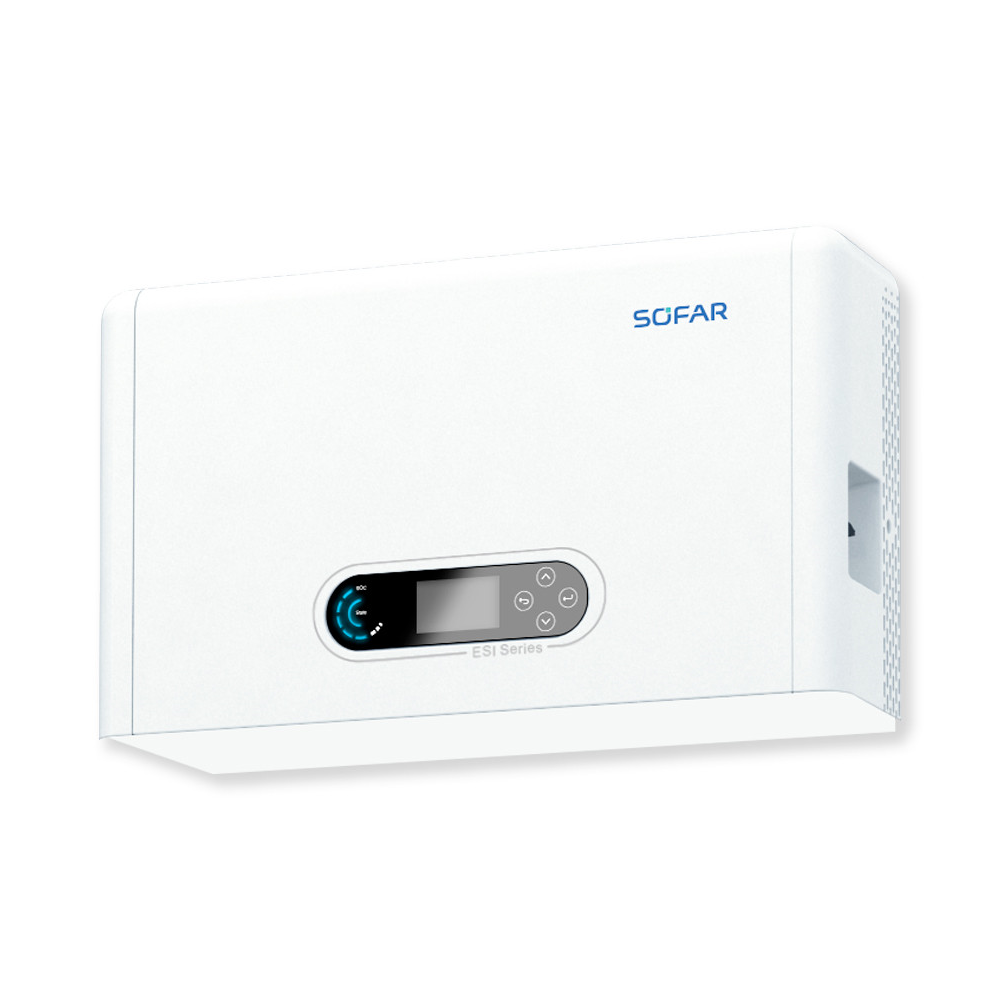

Single-phase, Dual MPPT Sofar ESI 5 kW Hybrid Inverter
Maximize the performance of your residential solar PV system with the Sofar ESI 5K-S1 string inverter. Designed for easy installation and reliable operation, this inverter delivers 5 kW of clean, grid-tied AC power.
Energy Storage: The Sofar ESI series inverter can be combined with Sofar BTS 5K lithium battery modules to create an all-in-one residential energy storage system. Up to six BTS 5K battery modules can be connected in parallel, enabling a configuration of 5 kW and up to 30 kWh of energy storage capacity. Sofar BTS 5K lithium batteries are available separately.
High Efficiency Conversion: With a peak efficiency of 97.8% and European efficiency of 97.1%, the ESI 5K-S1 converts solar energy into usable electricity with industry-leading performance.
Flexible System Design: Dual independent MPPTs allow you to connect solar arrays with different orientations or shading conditions, optimizing energy harvest.
Robust and Weather-Resistant: The IP65-rated enclosure protects internal components from dust and water, enabling reliable outdoor installation.
Convenient Monitoring: Built-in wireless communication enables remote monitoring and control via the Sofar mobile app and web portal.
Safety and Protection: Integrated DC switch and AC circuit breaker simplify installation and provide added safety. Advanced anti-islanding protection ensures grid compliance.
The Sofar ESI 5K-S1 is a versatile choice for homeowners, offering both solar power conversion and energy storage capabilities (optional) in a single, reliable system.
-
-
Allow sale if not in stockYes
-
Delivery up to working days10
-
European efficiency percent97.1
-
Input voltage range V85 - 520
-
Inverter typeHybrid
-
Item size LxWxH mm708 x 170 x 410
-
Item weight kg22.5
-
ManufacturerSofar Solar
-
Max efficiency percent97.8
-
Max input current A16 / 16
-
Max input power kW7.5
-
Max input voltage V550
-
ModelESI 5K-S1
-
MPPT number2
-
Operating temperature C0 / +50
-
Output power kW5
-
Phase number1
-
Product typeInverter
-
Protection degreeIP65
-
Warranty extension 10y
-
Warranty extension 15y
-
Warranty extension 20y
-
Warranty years5
-
