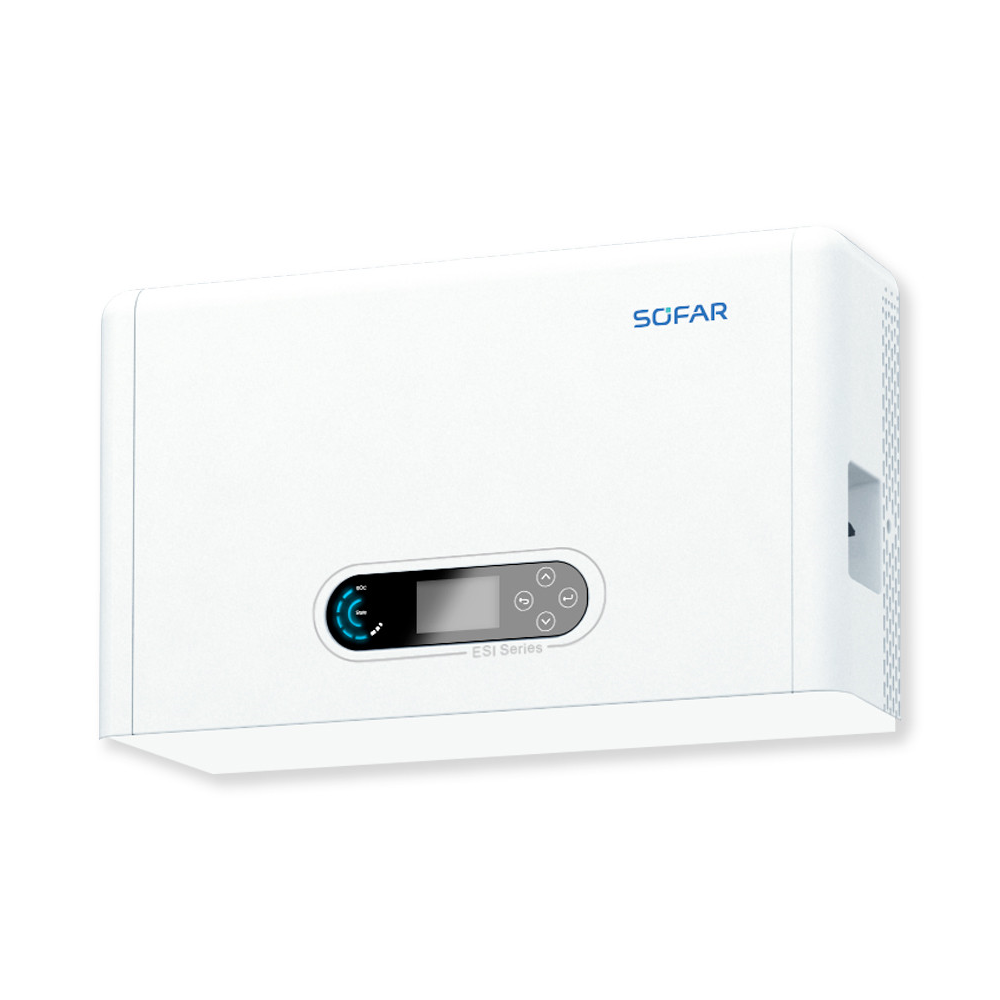

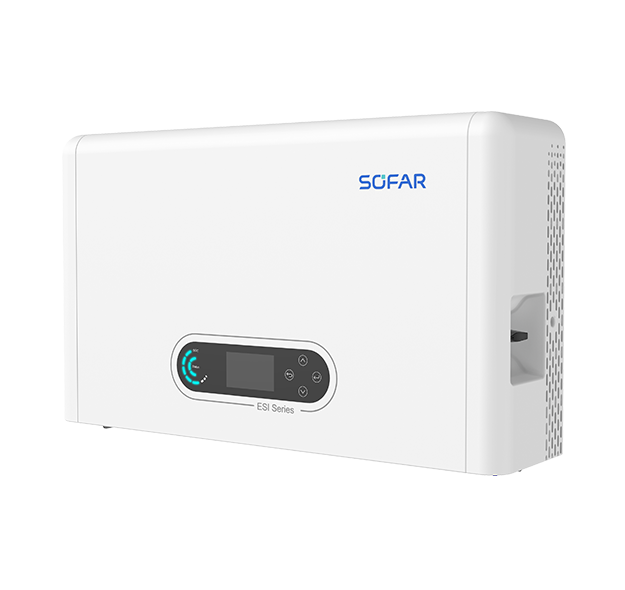

Inverteris Sofar ESI 3.68K-S1

Single-phase, Dual MPPT Sofar ESI 3.68 kW Hybrid Inverter

Maximize the performance of your residential solar PV system with the Sofar ESI 3.68K-S1 string inverter. Designed for easy installation and reliable operation, this inverter delivers 3.68 kW of clean, grid-tied AC power.

Energy Storage: The Sofar ESI series inverter can be combined with Sofar BTS 5K lithium battery modules to create an all-in-one residential energy storage system. Up to six BTS 5K battery modules can be connected in parallel, enabling a configuration of 5 kW and up to 30 kWh of energy storage capacity. Sofar BTS 5K lithium batteries are available separately.

High Efficiency Conversion: With a peak efficiency of 97% and European efficiency of 97.7%, the ESI 3.68K-S1 converts solar energy into usable electricity with industry-leading performance.

Flexible System Design: Dual independent MPPTs allow you to connect solar arrays with different orientations or shading conditions, optimizing energy harvest.

Robust and Weather-Resistant: The IP65-rated enclosure protects internal components from dust and water, enabling reliable outdoor installation.

Convenient Monitoring: Built-in wireless communication enables remote monitoring and control via the Sofar mobile app and web portal.

Safety and Protection: Integrated DC switch and AC circuit breaker simplify installation and provide added safety. Advanced anti-islanding protection ensures grid compliance.

The Sofar ESI 3.68K-S1 is a versatile choice for homeowners, offering both solar power conversion and energy storage capabilities (optional) in a single, reliable system.

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• European efficiency percent
  97.0
• Input voltage range V
  85 - 520
• Inverter type
  Hybrid
• Item size LxWxH mm
  708 x 170 x 410
• Item weight kg
  22.5
• Manufacturer
  Sofar Solar
• Max efficiency percent
  97.7
• Max input current A
  16 / 16
• Max input power kW
  5.4
• Max input voltage V
  550
• Model
  ESI 3.68K-S1
• MPPT number
  2
• Operating temperature C
  0 / +50
• Output power kW
  3.68
• Phase number
  1
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 10y
  Garantijos pratęsimas Sofar ESI 3.68K-S1 10y
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  5

Gamintojo specifikacija
