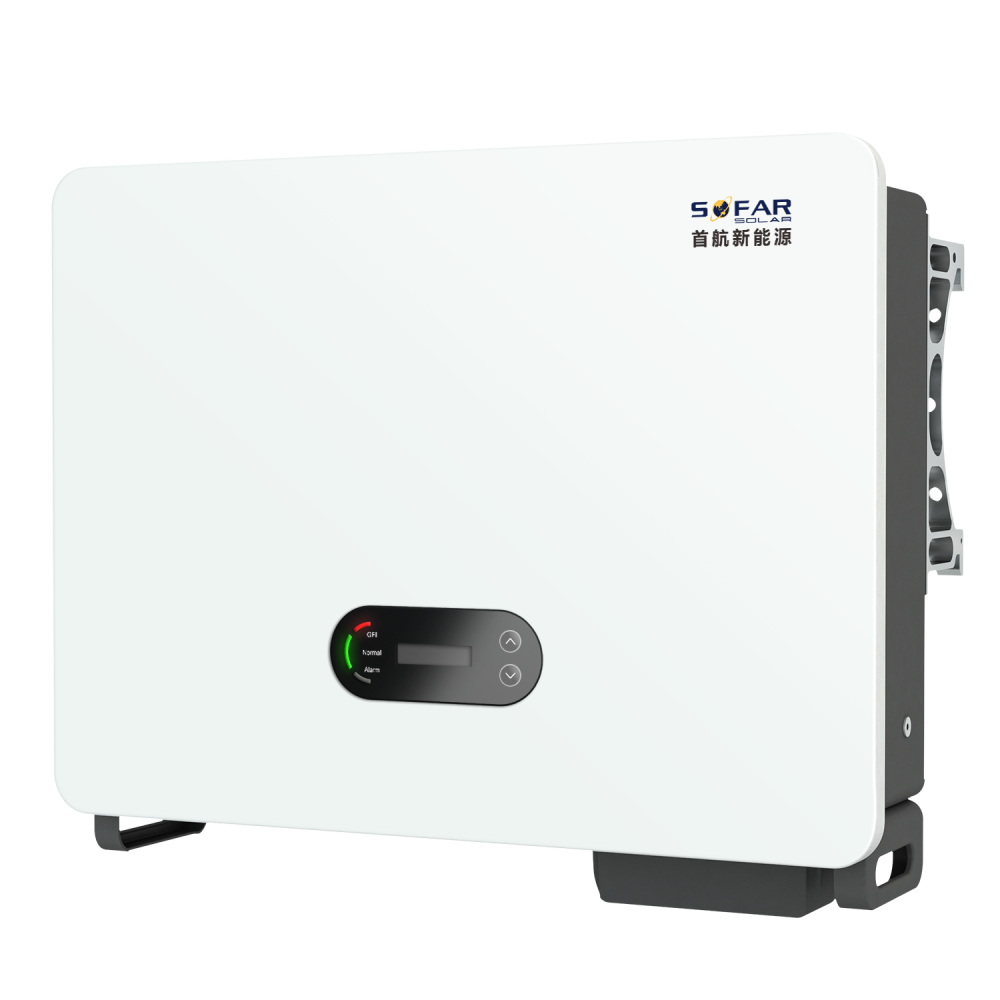

Inverteris Sofar 80KTLX-G3

Three-Phase

Six MPPTs

Max. efficiency up to 98.7%

Compatible with 500 W+ PV modules

Type II SPD for both DC and AC side

Supports Modbus Communication, external WiFi

Low start-up voltage, wide MPPT voltage range

Remote firmware upgrade

I-V curve scanning function

6 MPP trackers with 1.5 times DC over load

Longtime 110% AC overload ability

Wi-Fi included

SOFAR's latest lightweight solution for C&I projects

The SOFAR 60...80KTLX-G3 inverter series is SOFAR's latest state-of-the-art solution for C&I projects. Its high-end components and features make it the perfect partner for your C&I application.

Several highlights at a glance:

Fully compatible with high-current, large-sized 210 mm cells solar modules — for increased yields

6 MPPTs — enabling flexible system planning

High power density — saving installation and O&M costs

Lightweight and compact design — for a user-friendly installation

Supports aluminum cables — for low initial costs

Feed-in limitation

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• European efficiency percent
  98.2
• Input voltage range V
  180 - 1000
• Inverter type
  Standard
• Item size LxWxH mm
  687 x 561 x 275
• Item weight kg
  50
• Manufacturer
  Sofar Solar
• Max efficiency percent
  98.7
• Max input current A
  6 x 40
• Max input power kW
  120
• Max input voltage V
  1100
• Model
  Sofar 80KTLX-G3
• MPPT number
  6
• Operating temperature C
  -30 / +60
• Output power kW
  80
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP66
• Warranty extension 10y
• Warranty extension 15y
  Garantijos pratęsimas Sofar 80KTLX-G3 15y
• Warranty extension 20y
  Garantijos pratęsimas Sofar 80KTLX-G3 20y
• Warranty years
  10 (optional up to 20)
