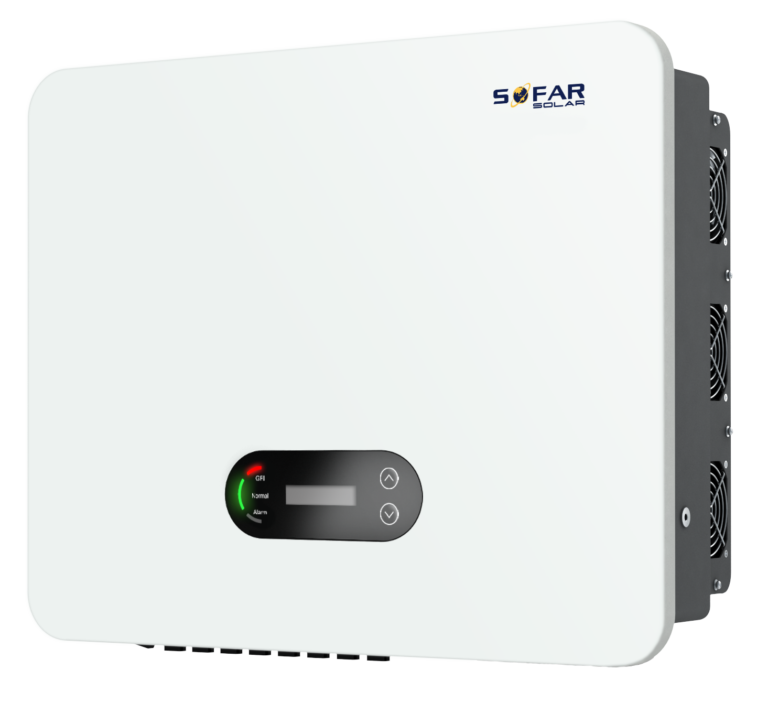

Inverteris Sofar 50KTLX-G3

Three-Phase

Three to Four MPPTs

Up to 4 MPPTs with DC overload capability (up to 150%)

Type II SPD for both DC and AC side

Lower start-up voltage, wide MPPT voltage range

I-V curve scanning function

Max. efficiency up to 98.8%

Prolonged AC overload capability (110%)

Compatible with 500W+ modules

Intelligent monitoring, remote operation

Wi-Fi included

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• European efficiency percent
  98.2
• Input voltage range V
  180 - 1000
• Inverter type
  Standard
• Item size LxWxH mm
  585 x 480 x 220
• Item weight kg
  37
• Manufacturer
  Sofar Solar
• Max efficiency percent
  98.8
• Max input current A
  4 x 40
• Max input power kW
  75
• Max input voltage V
  1100
• Model
  Sofar 50KTLX-G3
• MPPT number
  4
• Operating temperature C
  -30 / +60
• Output power kW
  50
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 10y
• Warranty extension 15y
  Garantijos pratęsimas Sofar 50KTLX-G3 15y
• Warranty extension 20y
  Garantijos pratęsimas Sofar 50KTLX-G3 20y
• Warranty years
  10 (optional up to 20)

Gamintojo specifikacija
