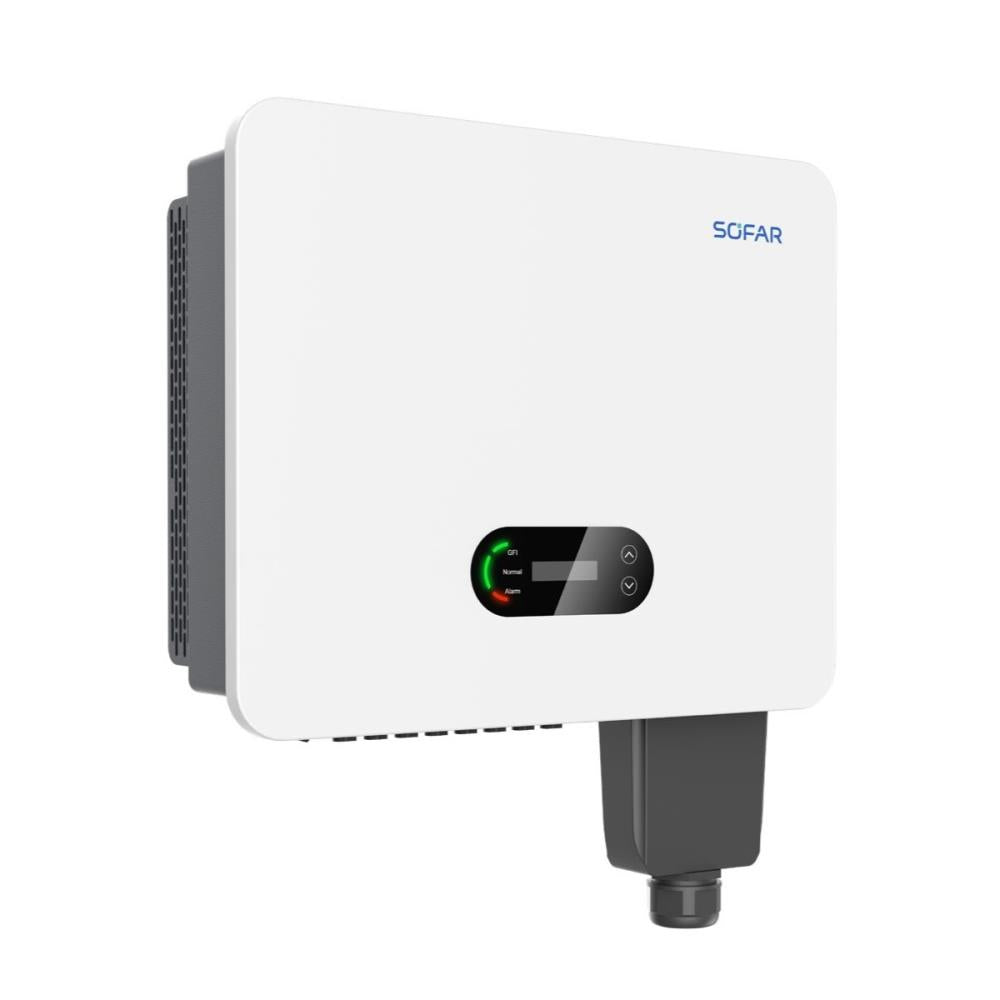

Sofar 30KTLX-G3 Three-phase String Inverter with AFCI Function

25-50KTLX-G3 is a photovoltaic grid-connected inverter designed for household and small industrial and commercial scenarios. In addition to the common monitoring and protection functions with other inverters, it is equipped with the AFCI self-developed anti-pull inverter of SOFAR. The arc function, by identifying the arc fault signal in the circuit, gives an early warning when an arc fault or short circuit occurs, and disconnects the inverter before causing a fire, so as to better protect the customer's property safety.

High yield

• Max. efficiency up to 98.60%
• Prolonged AC overload capability (110%)
• Low start-up voltage, wide MPPT voltage range

Wide compatibility

• Up to 3 MPPTs with DC overload capability (up to 150%)
• Compatible with 500Wp+ PV modules

Smart protection

• Type II SPD for both DC and AC side
• I-V curve scanning function

• Allow sale if not in stock
  Yes
• Delivery up to working days
  20
• European efficiency percent
  98.2
• Input voltage range V
  180 - 1000
• Inverter type
  Standard
• Item size LxWxH mm
  585 x 480 x 220
• Item weight kg
  36
• Manufacturer
  Sofar Solar
• Max efficiency percent
  98.6
• Max input current A
  3 x 40
• Max input power kW
  45
• Max input voltage V
  1100
• Model
  Sofar 30KTLX-G3 AFCI
• MPPT number
  3
• Operating temperature C
  -30 / +60
• Output power kW
  30
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 10y
• Warranty extension 15y
  Garantijos pratęsimas Sofar 30KTLX-G3 15y
• Warranty extension 20y
  Garantijos pratęsimas Sofar 30KTLX-G3 20y
• Warranty years
  10 (optional up to 20)
