Elektriniai parametrai (pagal STC)



-

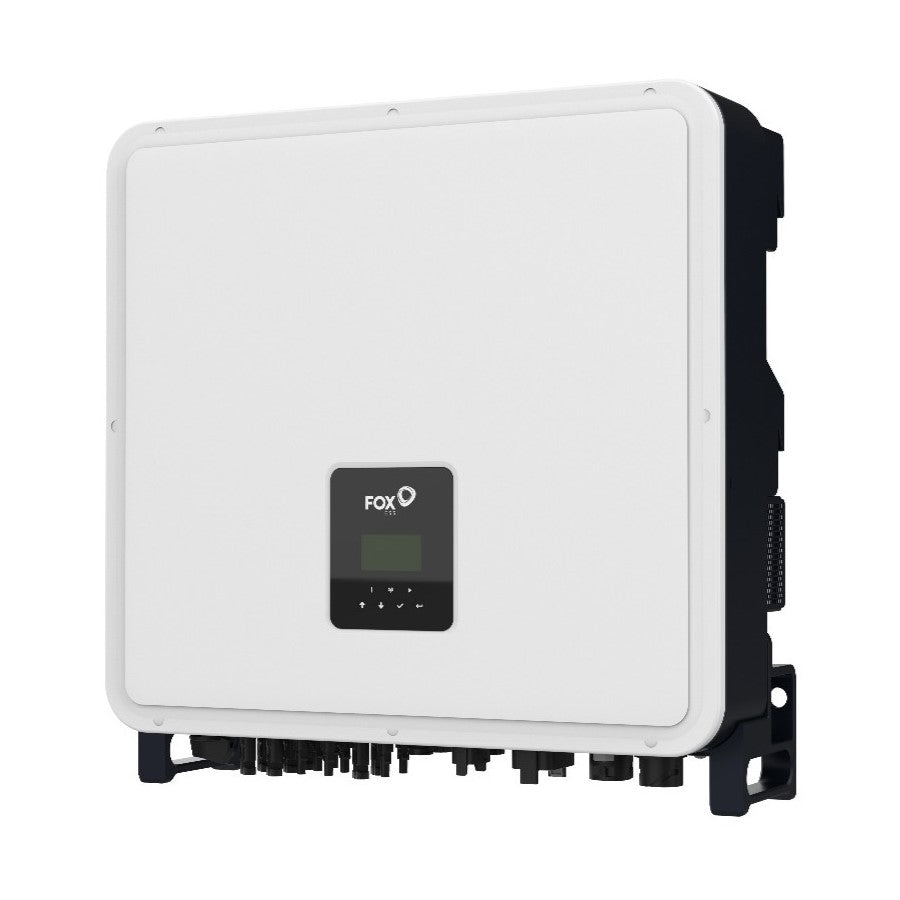

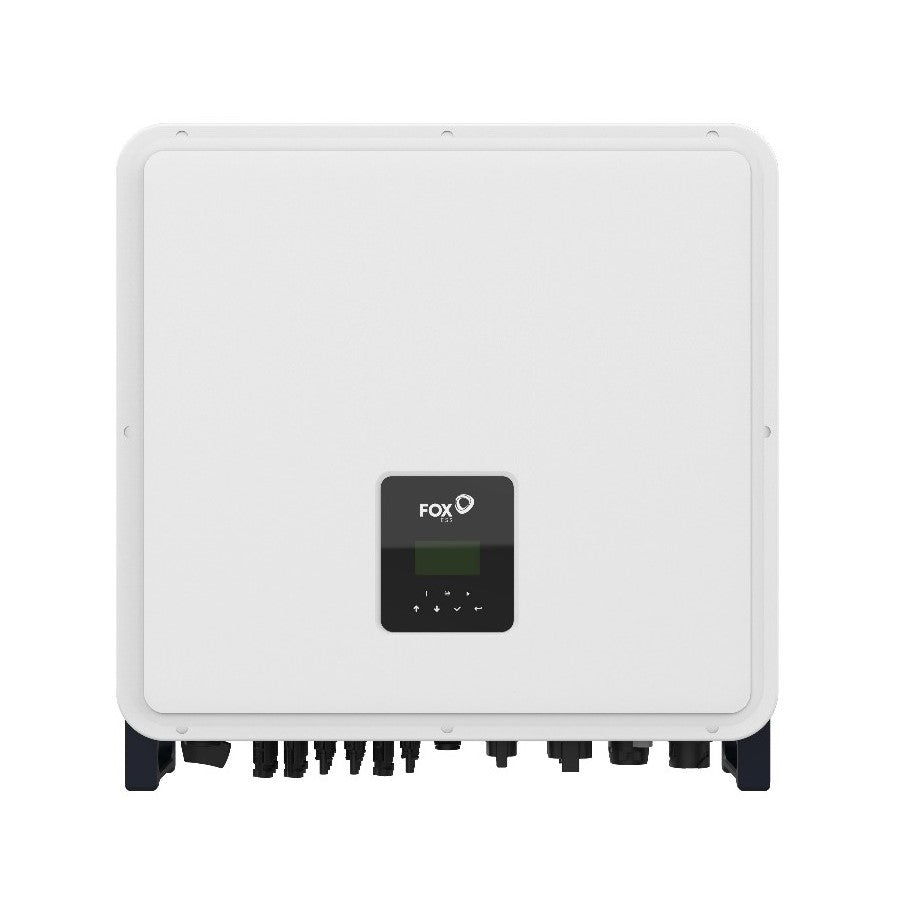

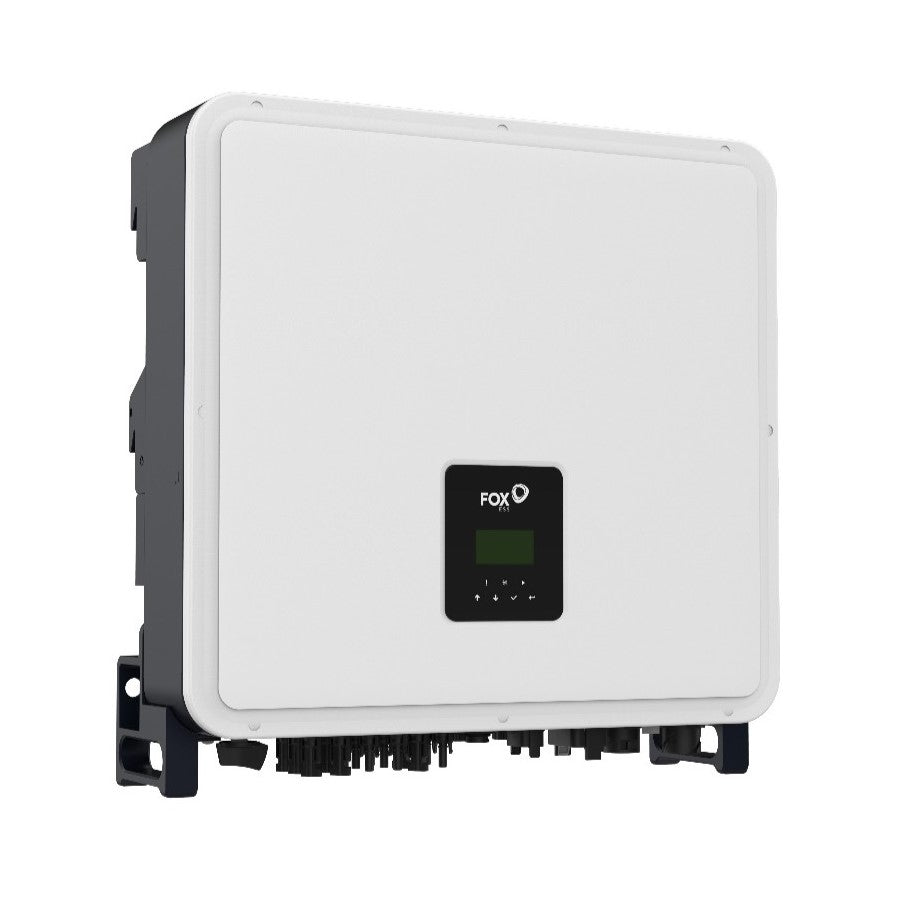

FoxESS H3-PRO Series Three-phase 3MPPT Hybrid Inverter
Wi-Fi / LCD display / Energy meter
- Superior performance. High charging/discharging efficiency.
- High voltage. Compatible with the latest FoxESS high-voltage batteries.
- Easy installation. Flexible configuration, plug and play set-up, built-in fuse protection.
- IP65 rated. Engineered to last with maximum flexibility. Suitable for outdoor installation.
- Remote monitoring. Monitor your system remotely via smartphone app or web portal.
- Natural cooling. Natural cooling, wide temperature tolerance and no noisy internal fans.
- Expandable / Upgradeable. Expand storage capacity, add additional batteries easily. Up to 18 batteries can be installed in series.
- Multiple variants. AC and Hybrid options with three battery sizing options for maximum flexibility.
- EPS function. Parallel Operation: On-Grid Parallel: 2 to 10 units, Off-Grid Parallel: 2 to 7 units.
- Safety & security. Enhanced safety features using advanced hardware & software protection.
-
-
Allow sale if not in stockYes
-
Delivery up to working days10
-
European efficiency percent97.3
-
Input voltage range V150 - 850
-
Inverter typeHybrid
-
Item size LxWxH mm600 x 560 x 225
-
Item weight kg52.5
-
ManufacturerFoxESS
-
Max efficiency percent97.8
-
Max input current A32
-
Max input power kW30
-
Max input voltage V1000
-
ModelH3-Pro-15.0
-
MPPT number3
-
Operating temperature C-25 / +60
-
Output power kW15
-
Phase number3
-
Product typeInverter
-
Protection degreeIP65
-
Warranty extension 10y
-
Warranty extension 15y
-
Warranty extension 20y
-
Warranty years10
-
