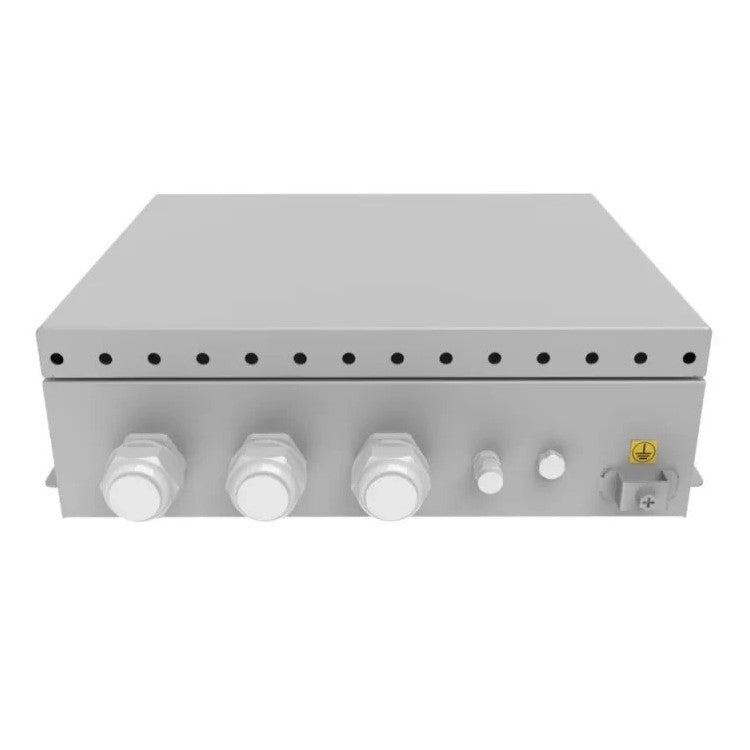

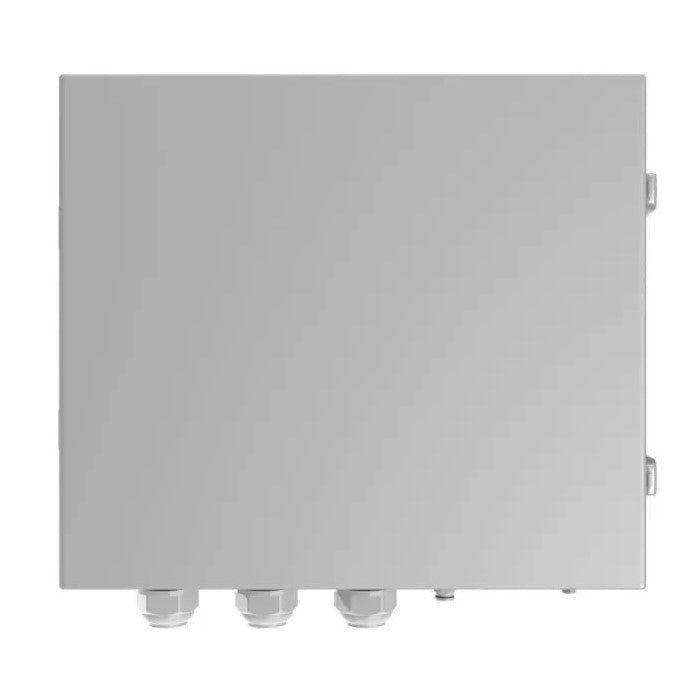

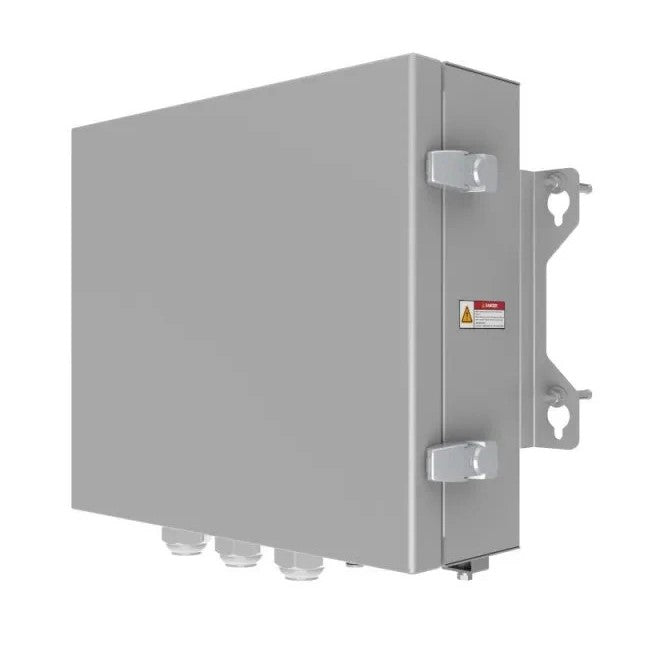

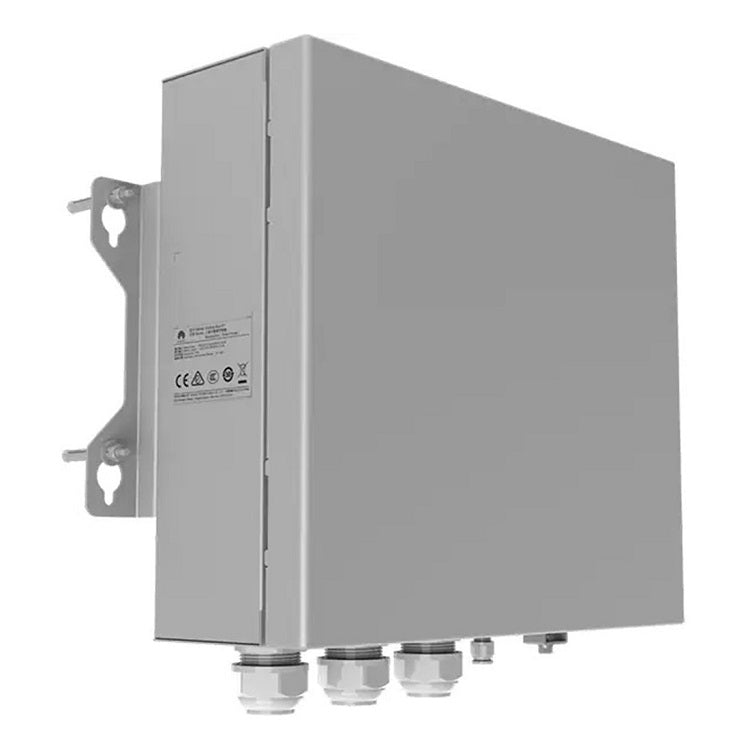

Huawei LUNA2000 Backup Box Backup Box-B1

The Three-Phase Backup Box-B1 is used in a residential rooftop PV plant system to control the inverter grid-tied or off-grid state. When the grid fails, the inverter switches to the off-grid state and supplies power to off-grid loads in backup mode. When the grid recovers, the inverter switches back to the grid-tied state.

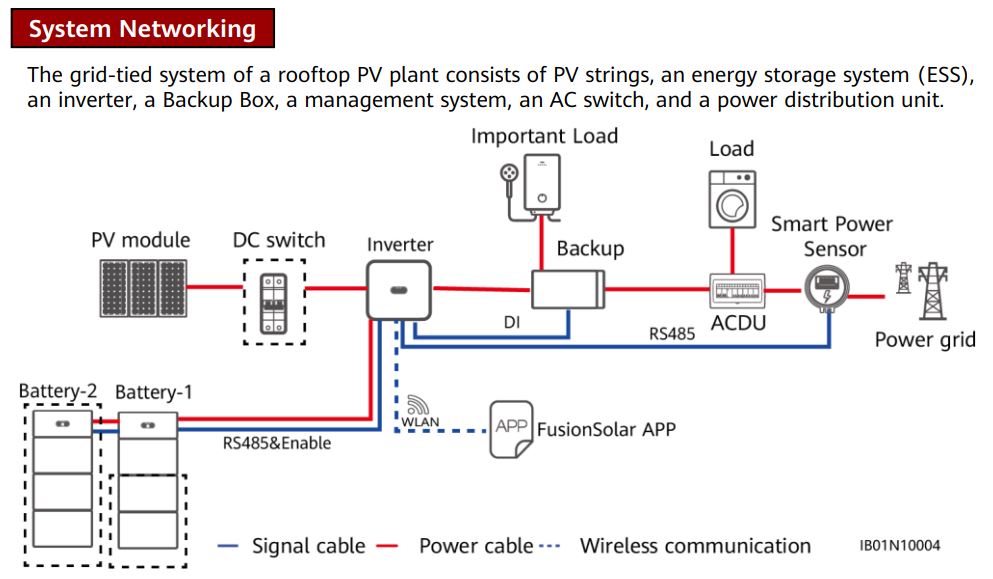

The grid-tied system of a rooftop PV plant consists of PV strings, an energy storage system (ESS), an inverter, a Backup Box, a management system, an AC switch, and a power distribution unit.

Compatible with Huawei LUNA2000 batteries and Huawei SUN2000-3/4/5/6/8/10KTL-M1 inverters.

Simple - Automatic detection & switchover

Reliable - Provide reliable backup power

Black Start - System restarts after battery shutdown

• Allow sale if not in stock
  Yes
• Battery type
  n/a
• Cycle life
  n/a
• Delivery up to working days
  2
• Item size LxWxH mm
  400 x 350 x 130
• Item weight kg
  11
• Manufacturer
  Huawei
• Max charge power kW
  n/a
• Max discharge power kW
  n/a
• Model
  Backup Box-B1
• Nominal capacity Ah
  n/a
• Nominal charge power kW
  n/a
• Product type
  Energy storage accessories
• Scalable
  n/a
• Total energy kWh
  n/a
• Usable energy 90 percent DOD kWh
  n/a
• Warranty years
  2
