Intelligent residential energy storage system

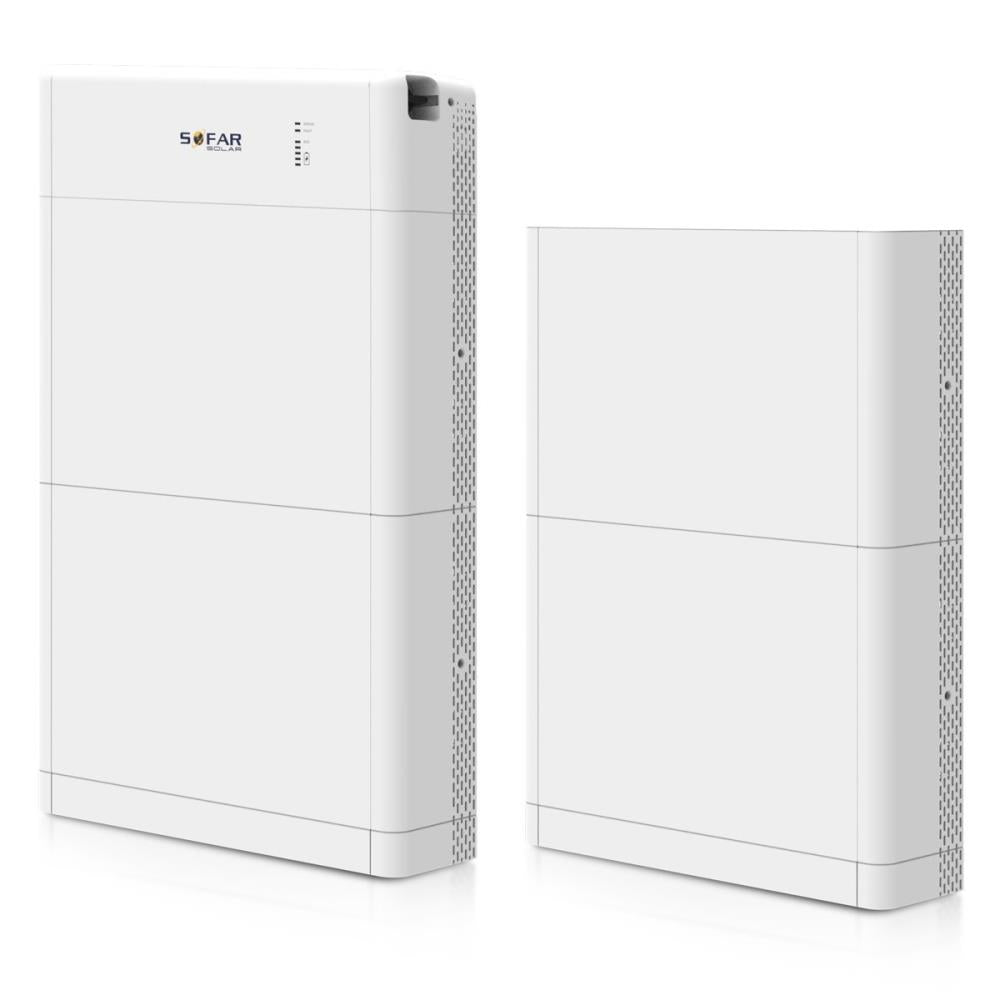

SOFAR's newest low-voltage battery system consists of up to 4 LiFePO4 battery modules, and one battery distribution unit.
The battery capacity can easily be expanded through the system's modular, stackable design. In combination with click-to-connect cables, installation is both fast and user-friendly. Up to two systems can be connected in parallel, amounting to 20 kWh of energy storage capacity.
The BTS series is compatible with SOFAR's HYD 5K–20KTL hybrid and ME 5K–20KTL battery inverter series.
Fully modular design, convenient for installation and transportation
Built-in battery pack balance management unit, increases battery capacity
Flexible battery capacity expansion
Extremely low battery self-consumption in sleep mode
Supports one-button startup/shutdown functions
Energy storage specially for ME / HYD 5K...20KTL-3PH inverters
-
-
Allow sale if not in stockYes
-
Battery typeLFP
-
Cycle life6000
-
Delivery up to working days2
-
Item size LxWxH mm708 x 170 x 900 / 708 x 170 x 1100
-
Item weight kg212
-
ManufacturerSofar Solar
-
Max charge power kW11.2
-
Max discharge power kW11.2
-
ModelBTS E20-DS5
-
Nominal capacity Ah400
-
Nominal charge power kW10
-
Product typeEnergy storage
-
Scalableup to 4
-
Total energy kWh20.48
-
Usable energy 90 percent DOD kWh19
-
Warranty years5
-
