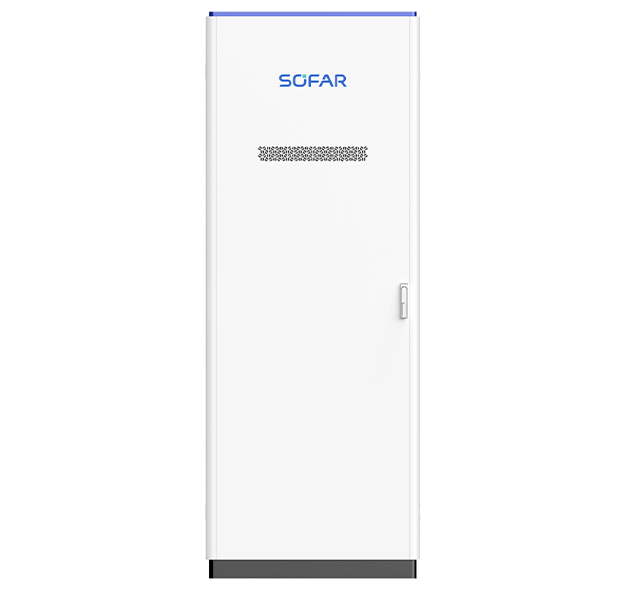

Elektros energijos kaupimo įrenginys Sofar Battery Cabinet ESS-215kLA-BD1EU

Download Sofar C&I ESS PowerMagic Presentation

Sofar Battery Cabinet: High-Density Energy Storage Extension for Commercial and Industrial Applications

The Sofar Battery Cabinet delivers expandable energy storage capacity for industrial parks and commercial complexes. Designed to seamlessly integrate with the PowerMagic Energy Storage System, these cabinets require a Sofar Energy Storage Cabinet for operation and allow up to 3 battery cabinets to be connected in parallel for customized storage solutions.

Modular Design: Available in multiple configurations utilizing advanced 280Ah LFP cells, these battery cabinets enable flexible system expansion to match specific energy requirements.

Advanced Safety Features: The cabinet incorporates multiple layers of protection:

• 3-level fire suppression system (FSS) with protection at battery cell, cabinet, and system levels

• Separated electrical and liquid cooling designs

• Flammable gas emission control and explosion vents

• IP55 protection rating for reliable indoor/outdoor operation

Intelligent Thermal Management:

• High-efficiency liquid cooling with anti-condensation system

• Intelligent humidity control

• Operating temperature range: -30°C to 50°C

• Optimized battery life cycle management

Applications:

• Industrial parks

• Commercial complexes

• Renewable energy storage systems

• Peak demand management

• Grid stability support

• Energy cost optimization

Product warranty - 24 months

• Warranty extension from 24 to 60 months can be purchased at 1.5% of the product price per year

• Warranty extension from 60 to 120 months can be purchased at 2% of the product price per year

• Warranty extension should be purchased at least 180 days before its expiration date

• Allow sale if not in stock
  Yes
• Battery type
  LFP
• Cycle life
  6000
• Delivery up to working days
  60
• Item size LxWxH mm
  1000 x 1350 x 2320
• Item weight kg
  2200
• Manufacturer
  Sofar Solar
• Max charge power kW
  n/a
• Max discharge power kW
  n/a
• Model
  ESS-215kLA-BD1EU
• Nominal capacity Ah
  280
• Nominal charge power kW
  n/a
• Product type
  Energy storage
• Scalable
  up to 3 battery cabinets
• Total energy kWh
  215 (5Pack)
• Usable energy 90 percent DOD kWh
  n/a
• Warranty years
  2
