Elektriniai parametrai (pagal STC)

-

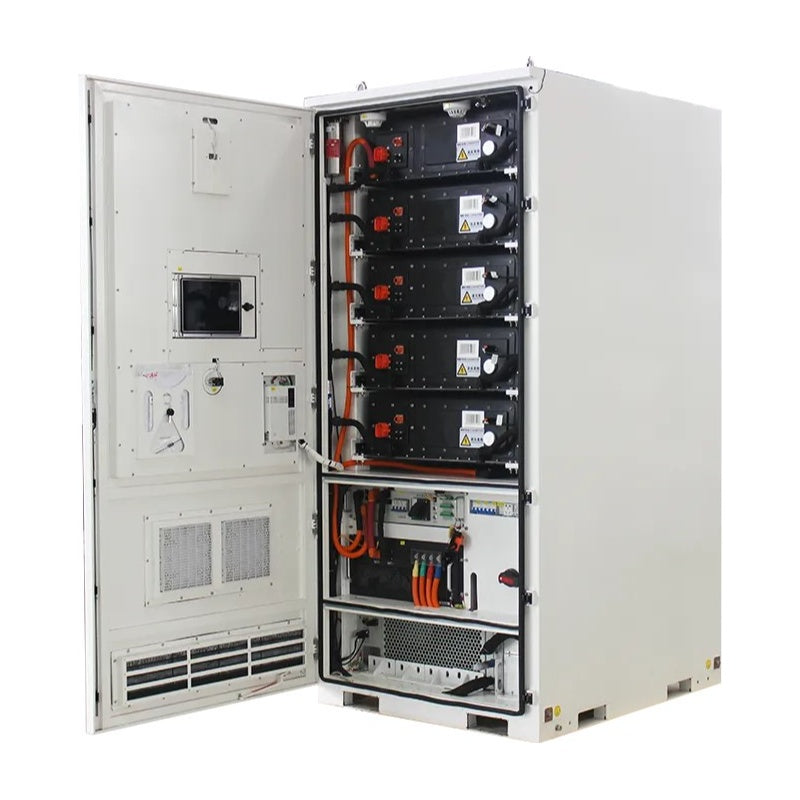

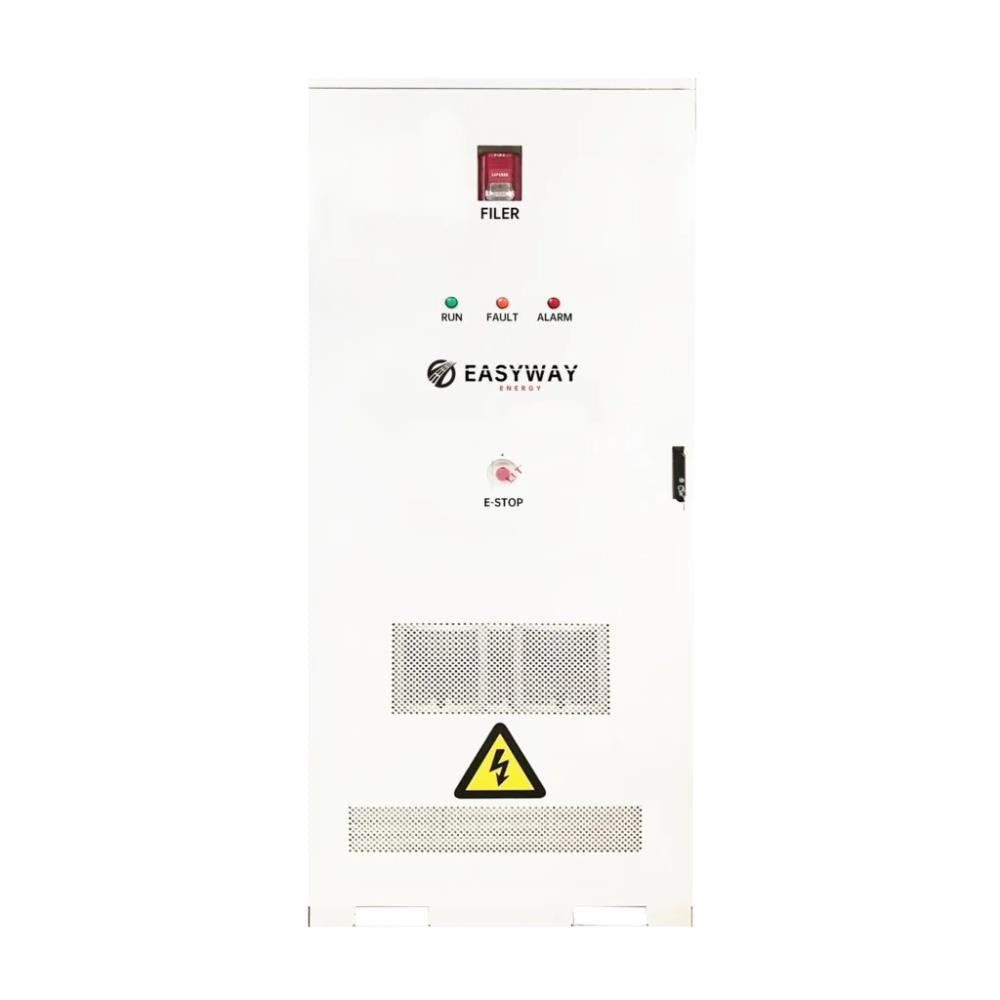

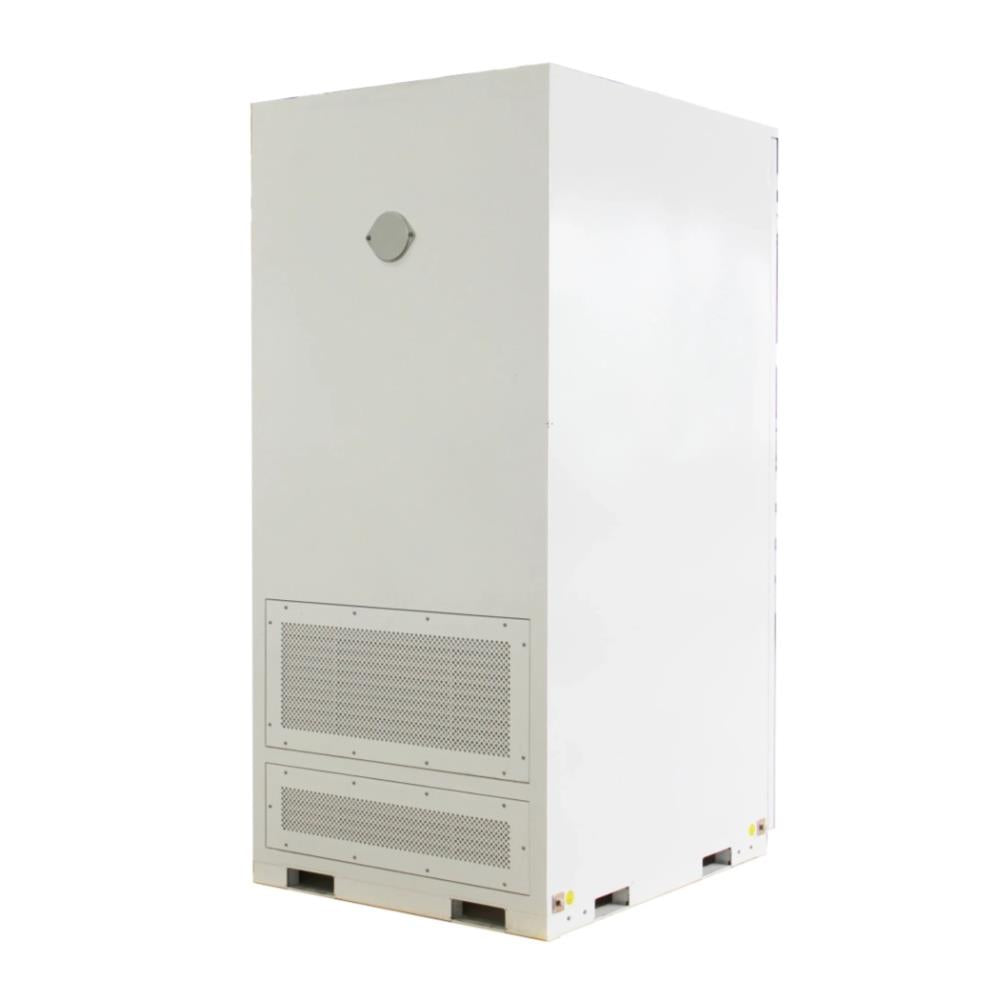

Easyway ESS-125 kW/261 kWh All-in-One Energy Storage Cabinet
Complete Energy Storage System with Integrated PCS and EMS
Power - 125 kW nominal output (137.5 kW maximum)
Capacity - 261.2 kWh total energy (245.57 kWh usable)
Batteries - LiFePO4 (LFP) 314Ah, 5 packs in series configuration
Voltage - 832V DC nominal, 3L/N/PE 220/380V, 230/400V AC output
Key Features:
- All-in-One design with integrated 125kW PCS and Energy Management System (EMS)
- Advanced 10kW liquid cooling system for superior thermal management
- High-consistency LFP batteries with smart temperature control for 8000+ battery cycles
- Cluster-level battery management for improved energy utilization
- Built-in fire extinguishing system with aerosol and PACK-level protection
- IP54 ingress protection rating for reliable operation
- System efficiency up to 88% for optimal energy conversion
- Scalable up to 10 units in parallel for on-grid applications (2,612 kWh)
- Scalable up to 4 units in parallel for off-grid systems (1,044.8 kWh)
- Factory configured and tested for rapid on-site deployment
- Audio-visual alarm device and emergency stop switch for enhanced safety
- Remote monitoring and control with self-diagnosis capability
The ESS-125kW/261kWh is a complete all-in-one energy storage solution with integrated 125kW PCS and EMS. Featuring five 314Ah LiFePO4 battery packs, advanced liquid cooling, and IP54-rated enclosure with fire suppression for safe operation in commercial and industrial applications.
-
-
Allow sale if not in stockYes
-
Battery typeLFP
-
Cycle life8000
-
Delivery up to working days30
-
Item size LxWxH mm1055 x 2300 x 1300
-
Item weight kg2650
-
ManufacturerEasyway
-
Max charge power kW125
-
Max discharge power kW137.5
-
ModelESS-125kW/261kWh
-
Nominal capacity Ah314
-
Nominal charge power kW125
-
Product typeEnergy storage
-
Scalableup to 10 cabinets in parallel (on-grid)
-
Total energy kWh261.2
-
Usable energy 90 percent DOD kWh245.57
-
Warranty years10
-
