Elektros energijos kaupimo įrenginys AlphaESS STORION-LC-TB125 Main Cabinet with EMS 125kW/261kWh

Elektros energijos kaupimo įrenginys AlphaESS STORION-LC-TB125 Main Cabinet with EMS 125kW/261kWh

€46.583,79 EUR
€46.583,79 EUR
€46.583,79 EUR
Išpardavimas Išparduota
Mokesčiai įtraukti. Siuntimo išlaidos apskaičiuojamos atsiskaitant.
Pristatymo terminas: 30 d.d.
Žiūrėti visą informaciją

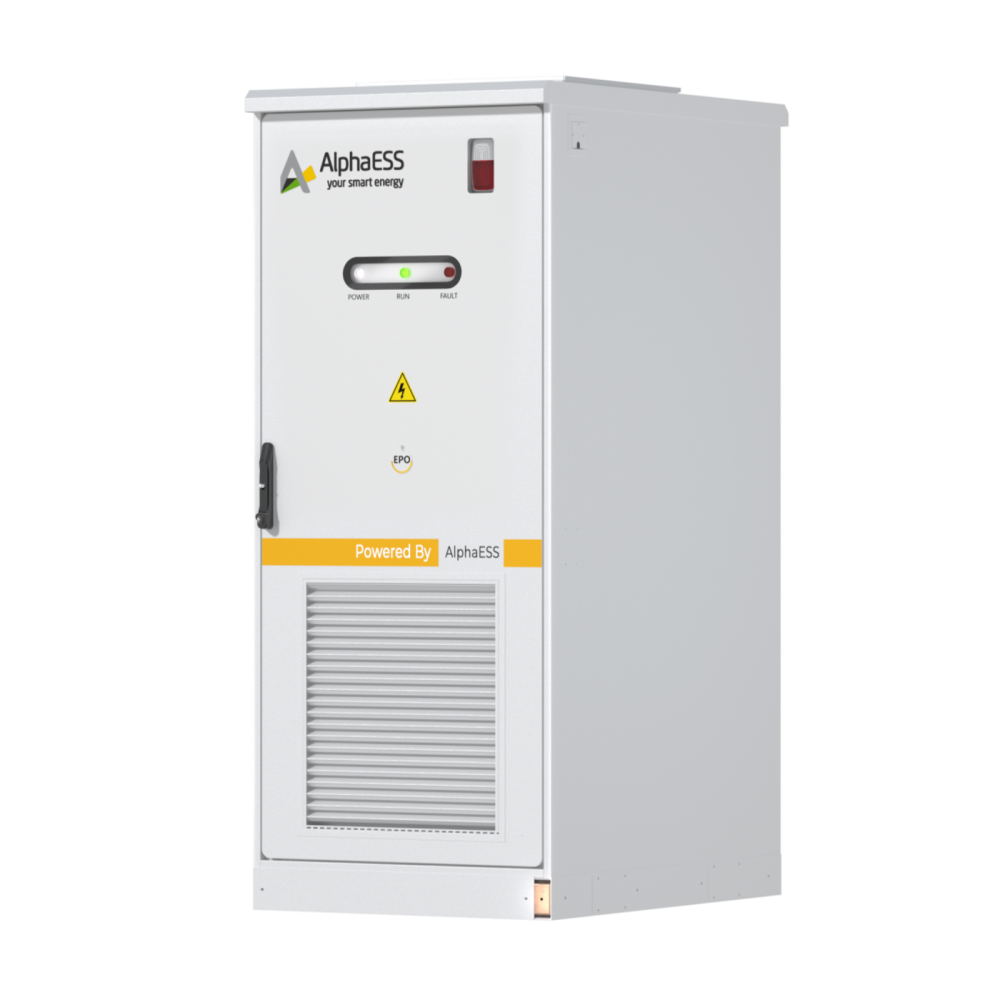

  • AlphaESS STORION-LC-TB125 Energy Storage Cabinet - Main Unit with EMS

    Pre-assembled Liquid-Cooling Battery Energy Storage System (BESS)

    Power - 125 kW nominal output

    Capacity - 261.2 kWh per cabinet, expandable to 522.4 kWh per system

    Batteries - LiFePO4 (LFP) 314Ah

    Key Features:

    • All-in-One Design with integrated EMS (Energy Management System)
    • UL9540A certified with three-level intelligent fire suppression system
    • Advanced liquid-cooling temperature control (system-wide temperature difference within 3°C)
    • Seamless backup power switching under 20ms (with optional STS Cabinet)
    • IP55 protection rating for outdoor installation
    • Scalable up to 50 units in parallel (on-grid mode)
    • Remote monitoring and control via web and mobile apps
    • Multiple operating modes: DC-coupled, AC-coupled, and retrofit compatible

    The STORION-LC-TB125 is an advanced 125kW/261.2kWh liquid-cooled battery energy storage system designed for commercial and industrial applications. This all-in-one BESS features high-performance 314Ah LiFePO4 batteries with 98% depth of discharge for on-grid use and 90% for off-grid applications. The intelligent liquid-cooling system maintains optimal performance with temperature variations of just 3°C across the entire system, maximizing efficiency and battery lifespan. With IP55 protection and UL9540A certification, the system is built for reliability and safety. The main cabinet includes an integrated Energy Management System (EMS) for complete control and can be expanded with AlphaESS Follower Cabinets to scale your energy storage capacity. Perfect for peak shaving, load shifting, backup power, and solar integration in commercial facilities. Seamless backup switching in under 20ms (with optional STS cabinet) ensures uninterrupted power during grid outages.
