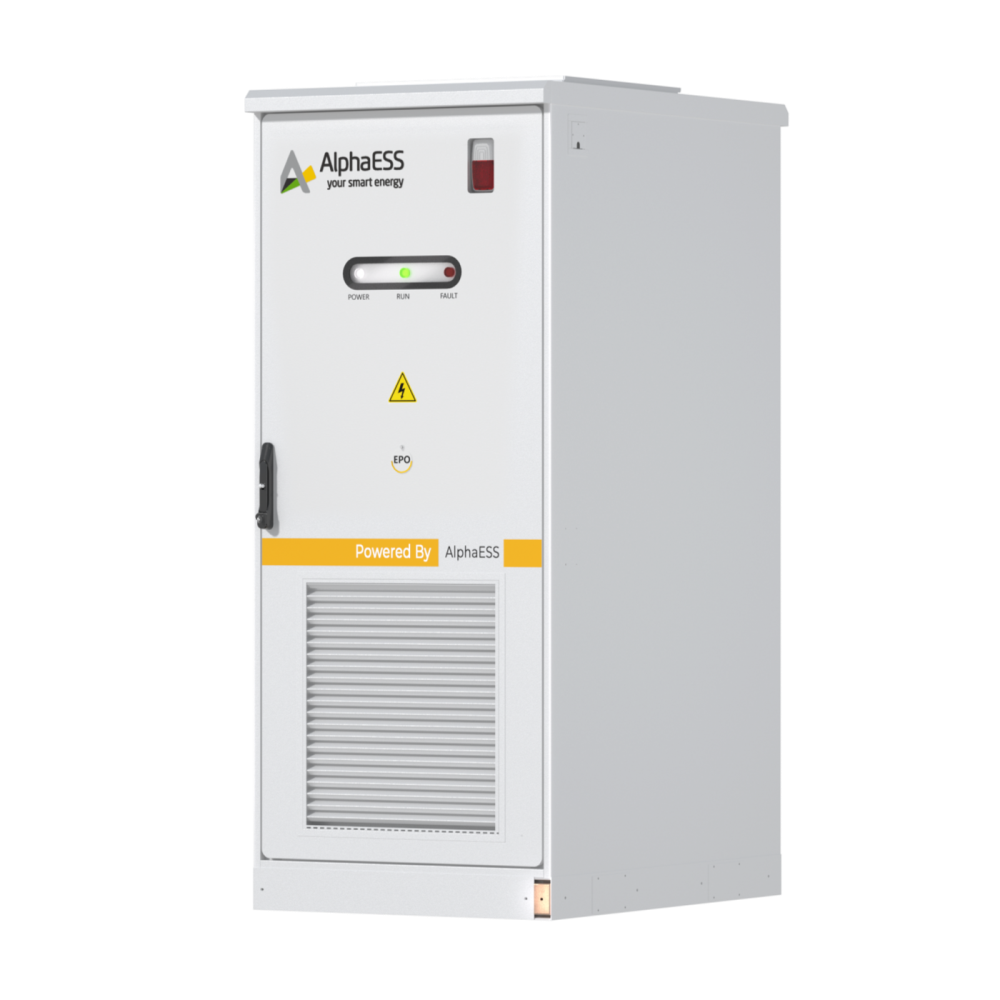

Elektros energijos kaupimo įrenginys AlphaESS STORION-LC-TB125 Follower Cabinet without EMS 125kW/261kWh

Elektros energijos kaupimo įrenginys AlphaESS STORION-LC-TB125 Follower Cabinet without EMS 125kW/261kWh

€44.768,79 EUR
€44.768,79 EUR
€44.768,79 EUR
Išpardavimas Išparduota
Mokesčiai įtraukti. Siuntimo išlaidos apskaičiuojamos atsiskaitant.
Pristatymo terminas: 30 d.d.
Žiūrėti visą informaciją

  • AlphaESS STORION-LC-TB125 Energy Storage Cabinet - Follower Unit without EMS

    Pre-assembled Liquid-Cooling Battery Energy Storage System (BESS) Expansion

    Power - 125 kW nominal output

    Capacity - 261.2 kWh per cabinet

    Batteries - LiFePO4 (LFP) 314Ah

    Key Features:

    • Expansion unit for STORION-LC-TB125 Main Cabinet
    • All-in-One Design with integrated battery modules and inverter
    • UL9540A certified with three-level intelligent fire suppression system
    • Advanced liquid-cooling temperature control (system-wide temperature difference within 3°C)
    • IP55 protection rating for outdoor installation
    • Seamless integration with Main Cabinet via EMS control
    • Multiple operating modes: DC-coupled, AC-coupled, and retrofit compatible

    The STORION-LC-TB125 Follower Cabinet is an expansion unit that adds 261.2kWh of storage capacity to your existing STORION-LC-TB125 system. This liquid-cooled battery cabinet features the same high-performance 314Ah LiFePO4 batteries and 125kW power output as the Main Cabinet but is controlled by the Main Cabinet's Energy Management System (EMS). Each Follower Cabinet includes 5 battery modules, integrated inverter, and three-level fire suppression system with IP55 protection and UL9540A certification. The intelligent liquid-cooling maintains optimal battery performance with temperature variations of just 3°C. Requires at least one Main Cabinet with EMS to operate. Follower Cabinets enable you to scale your energy storage from 261.2kWh to 522.4kWh or beyond, making it ideal for growing commercial and industrial energy needs including peak shaving, load shifting, backup power, and solar integration.
