Elektros energijos kaupimo įrenginio valdiklis Sofar CBS5000-BCU

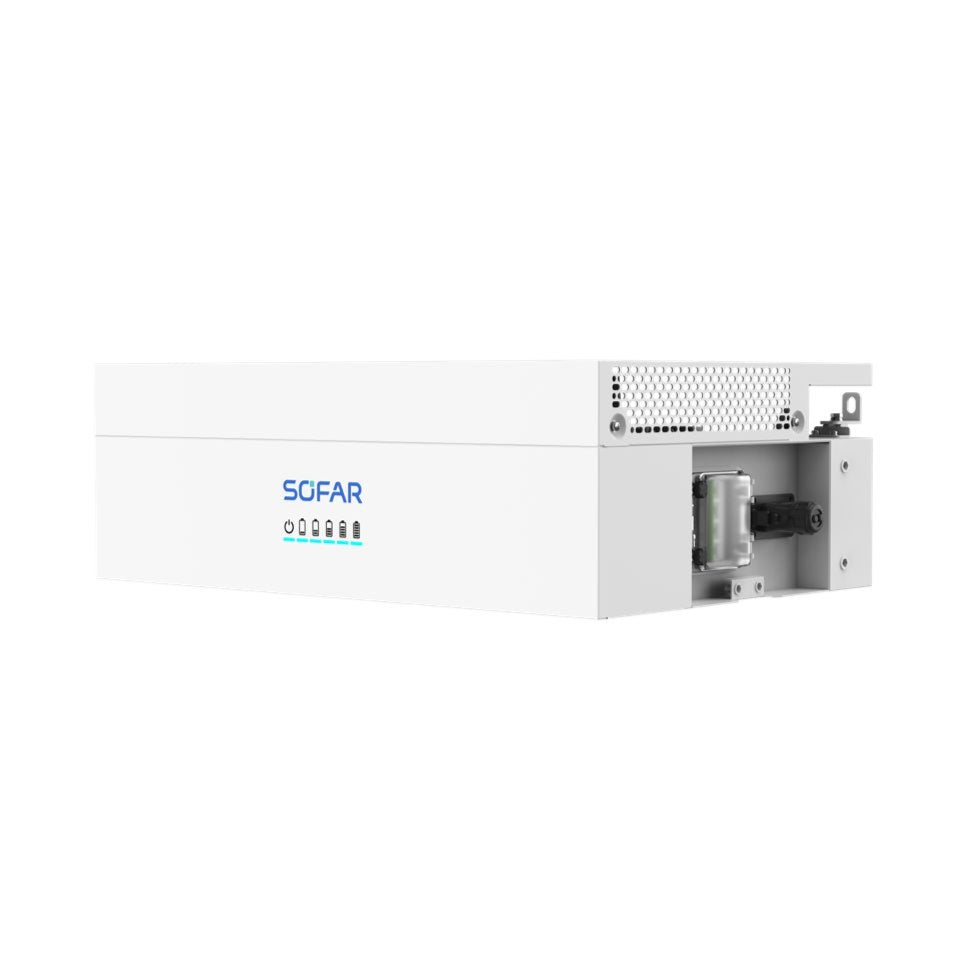

Sofar CBS5000-BCU Smart Battery Control Unit

CBS5000-BCU is a module controlling the operation of high-voltage sets of CBS5000-BMU batteries. The module and batteries are used to build modern and smart CBS5000-H4-H12 energy storage systems with a utility capacity of 20 kWh to 60 kWh and expand it up to 240 kWh when connecting 4 racks in parallel.

• One cluster one management, high pressure box integrated built-in optimizer, can achieve free output voltage rise and fall, support flexible expansion.
• Active equalization between battery packs, higher usable energy. The integrated stack installation solution, allows quick onsite installation, and not need connect cables.
• Internal heater, supports charging in low temperature condtions.
• Up to 4 racks in parallel, 20-240kWh wide battery energy range.
• One-button automatic recognition, simple and convenient operation.
• IP66 protection rating, more reliable and safe.
• The integrated stack installation solution, allows quick onsite installation, and not need connect cables.
• All-weather performance from -20°C to +55°C, perfect for outdoor installation.

• Allow sale if not in stock
  Yes
• Battery type
  n/a
• Cycle life
  n/a
• Delivery up to working days
  20
• Item size LxWxH mm
  625 x 415 x 210
• Item weight kg
  22
• Manufacturer
  Sofar Solar
• Max charge power kW
  30
• Max discharge power kW
  30
• Model
  CBS5000-BCU
• Nominal capacity Ah
  n/a
• Nominal charge power kW
  n/a
• Product type
  Energy storage
• Scalable
  up to 12
• Total energy kWh
  n/a
• Usable energy 90 percent DOD kWh
  n/a
• Warranty years
  10

Gamintojo specifikacija
