Elektros energijos kaupimo įrenginio valdiklis Easyway UNIV7600(HP) (BDU+BASE)

High Voltage Control Box & Base Easyway UNIV7600(HP). Improved (HP) model.

Battery Control Unit (BDU) + BASE

Compatible with Sofar, Solis and other hybrid inverters

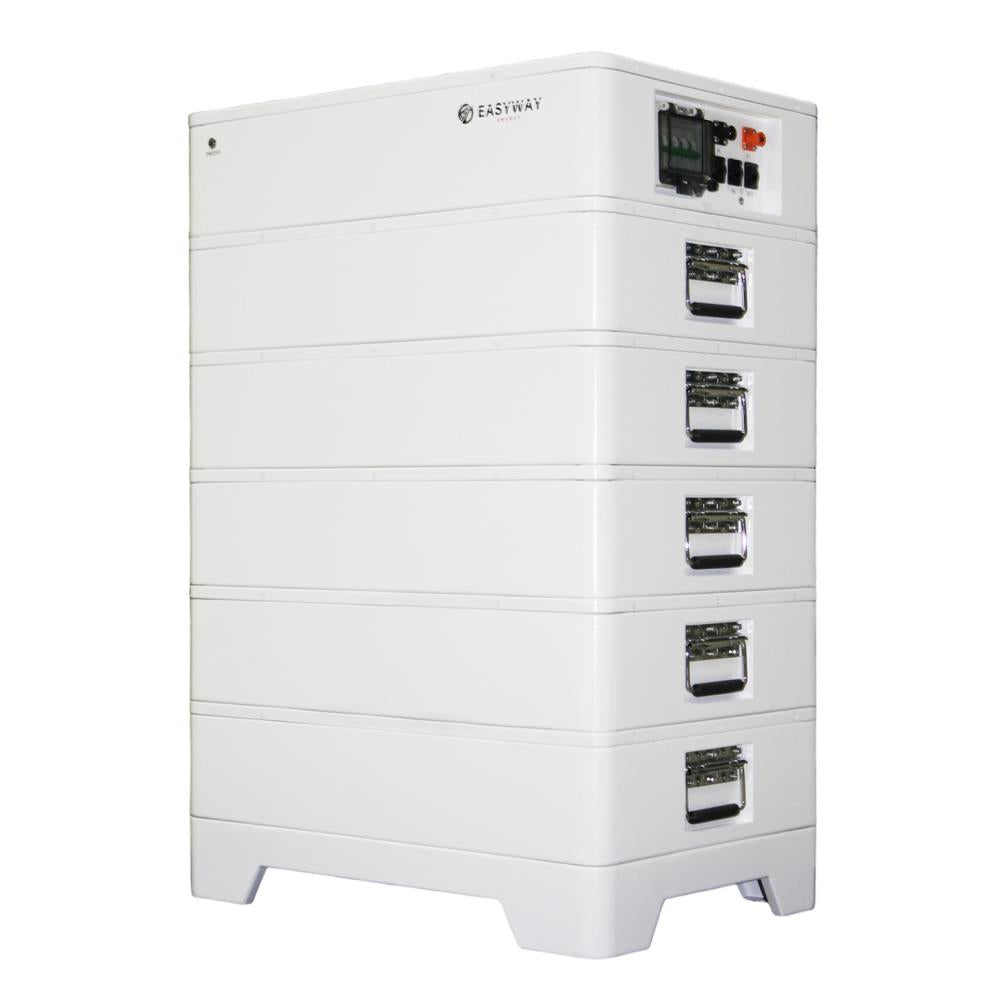

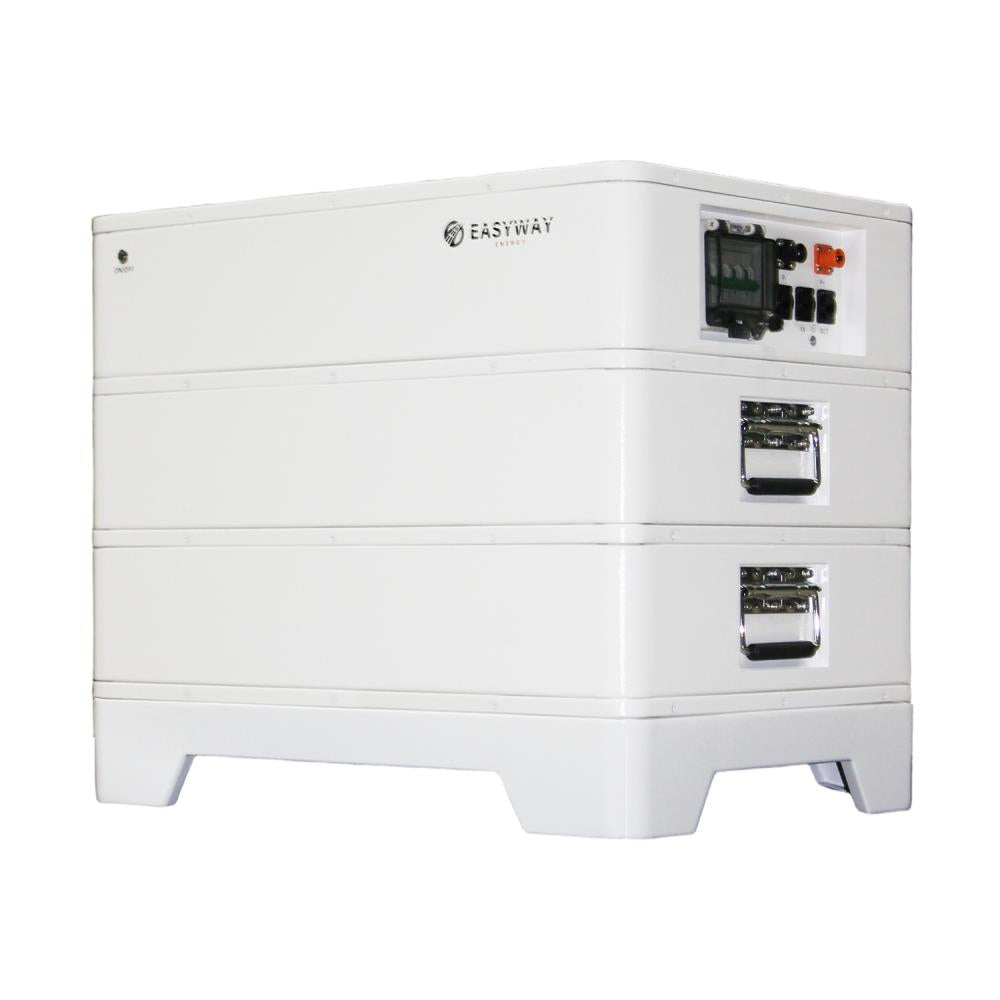

Easyway UNIV7600(HP) Battery Control Unit (BDU) and Battery Modules are used to build modern, modular and stackable Energy Storage Systems (ESS) UNIV-HV-ST with a capacity from 15.36kWh to 61.44kWh.

• Simple Installation Design
• Water Proofing
• Superior BMS with Brand Battery Cell
• Large Capacity range: 15kWh -- 61kWh
• Brand new Grade-A cells
• Large Scalability. Flexible for expansion and installation.
• Wide Compatibility. Matching with multiple inverters, used in different scenario (Hybrid/Off-gird).
• 10 Years Warranty

Gamintojo sertifikatas CE-EMC

Gamintojo sertifikatas CE-LVD

• Allow sale if not in stock
  Yes
• Battery type
  n/a
• Cycle life
  n/a
• Delivery up to working days
  10
• Item size LxWxH mm
  660 x 450 x 260
• Item weight kg
  28
• Manufacturer
  Easyway
• Max charge power kW
  7.68
• Max discharge power kW
  7.68
• Model
  UNIV7600(HP)-BDU
• Nominal capacity Ah
  n/a
• Nominal charge power kW
  7.68
• Product type
  Energy storage
• Scalable
  up to 8
• Total energy kWh
  n/a
• Usable energy 90 percent DOD kWh
  n/a
• Warranty years
  10
