Elektros energijos kaupimo įrenginio talpa su valdikliu FoxESS Energy Cube CM2900

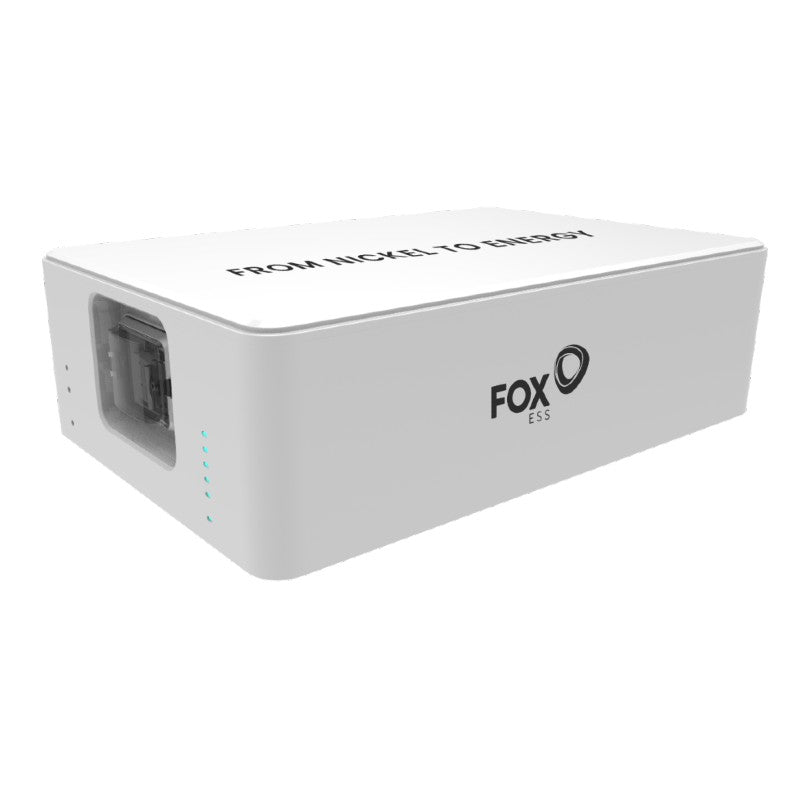

FoxESS Energy Cube CM2900 High Voltage Battery Module with BMS

Battery management system CM2900 and battery modules CS2900 are used to build modern ECS2900-H2...H7 energy storage systems with a capacity from 5.76 kWh to 20.16 kWh.

• 2.88 kWh battery capacity
• High voltage
• Long lifespan.
• Easy installation. Plug and play set-up.
• 95% charge/discharge efficiency
• Expandable system. Max. 7 modules in series.
• 90% depth of discharge
• Wide temperature tolerance
• CAN/RS485 communication

• Allow sale if not in stock
  Yes
• Battery type
  LiFePO4
• Cycle life
  6000
• Delivery up to working days
  10
• Item size LxWxH mm
  570 x 380 x 230
• Item weight kg
  36.3
• Manufacturer
  FoxESS
• Max charge power kW
  2.88
• Max discharge power kW
  2.88
• Model
  CM2900
• Nominal capacity Ah
  50
• Nominal charge power kW
  1.44
• Product type
  Energy storage
• Scalable
  up to 7
• Total energy kWh
  2.88
• Usable energy 90 percent DOD kWh
  2.59
• Warranty years
  5

Gamintojo specifikacija
