Elektros energijos kaupimo įrenginio talpa Sofar CBS5000-BMU

Šiam energijos kaupikliui skiriama 5kWh x 380 EUR = 1900 EUR APVA kompensacija.

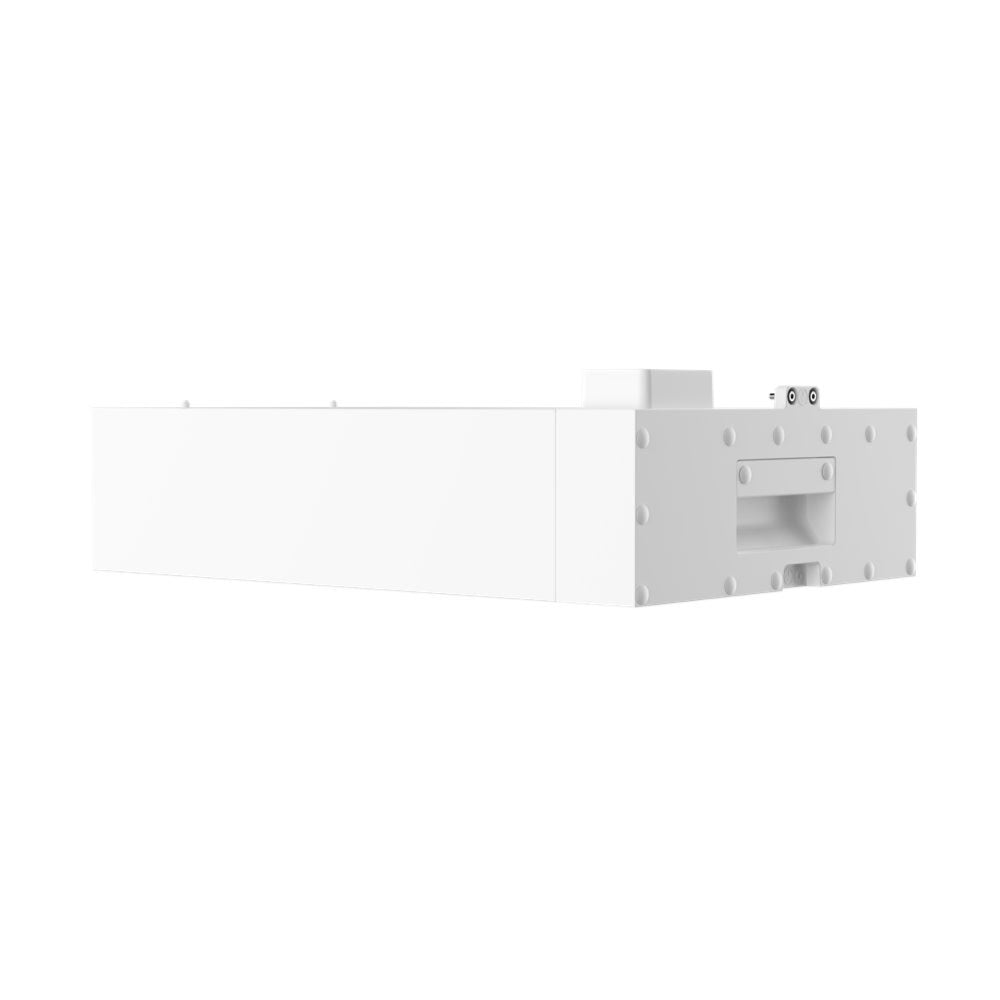

Sofar CBS5000-BMU Smart Battery Module

CBS5000-BMU battery modules and battery control unit CBS5000-BCU are used to build modern and smart CBS5000-H4-H12 energy storage systems with a utility capacity of 20 kWh to 60 kWh and expand it up to 240 kWh when connecting 4 racks in parallel.

• One cluster one management, high pressure box integrated built-in optimizer, can achieve free output voltage rise and fall, support flexible expansion.
• Active equalization between battery packs, higher usable energy. The integrated stack installation solution, allows quick onsite installation, and not need connect cables.
• Internal heater, supports charging in low temperature condtions.
• Up to 4 racks in parallel, 20-240kWh wide battery energy range.
• One-button automatic recognition, simple and convenient operation.
• IP66 protection rating, more reliable and safe.
• The integrated stack installation solution, allows quick onsite installation, and not need connect cables.
• All-weather performance from -20°C to +55°C, perfect for outdoor installation.

• Allow sale if not in stock
  Yes
• Battery type
  LiFePO4, Lithium Iron Phosphate
• Cycle life
  6000
• Delivery up to working days
  20
• Item size LxWxH mm
  625 x 415 x 176
• Item weight kg
  47
• Manufacturer
  Sofar Solar
• Max charge power kW
  n/a
• Max discharge power kW
  n/a
• Model
  CBS5000-BMU
• Nominal capacity Ah
  100
• Nominal charge power kW
  2.5
• Product type
  Energy storage
• Scalable
  n/a
• Total energy kWh
  5.12
• Usable energy 90 percent DOD kWh
  4.608
• Warranty years
  10

Gamintojo specifikacija
