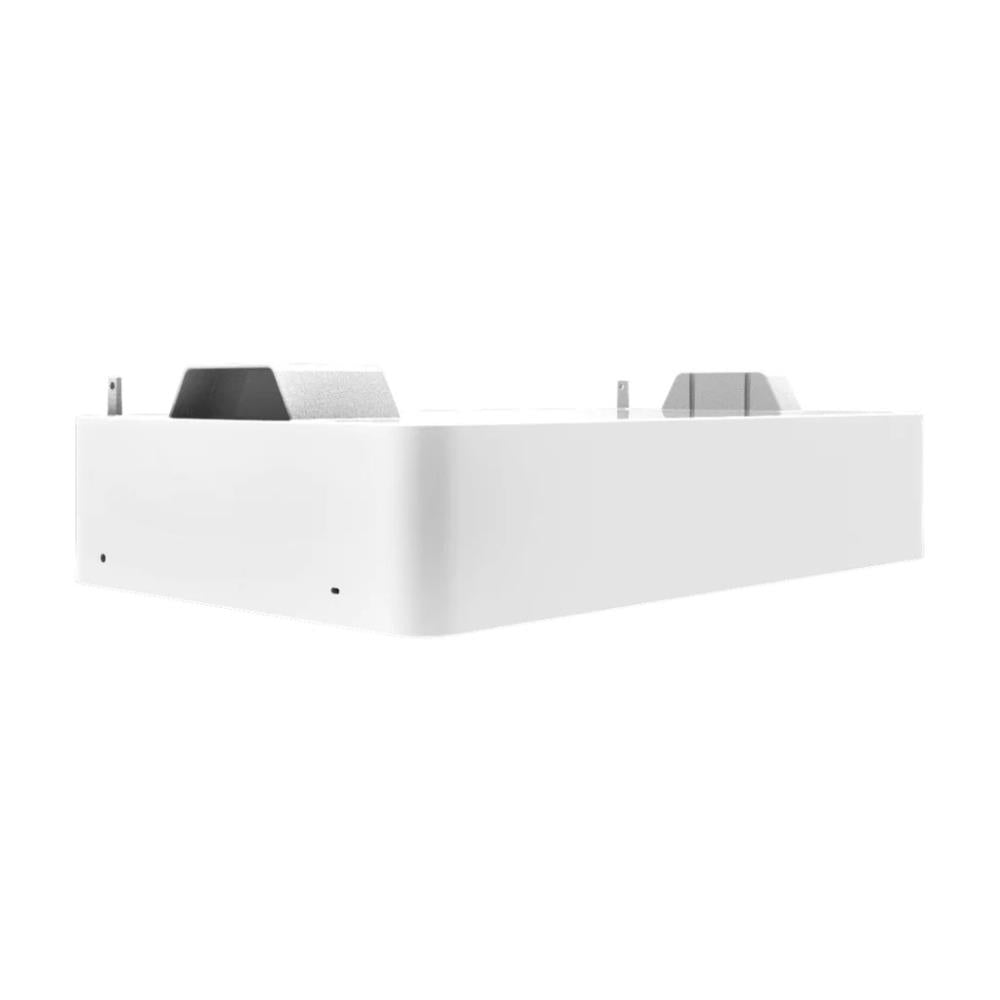

FoxESS Energy Cube CS2900 High Voltage Battery Module
CS2900 battery modules and battery management system CM2900 are used to build modern ECS2900-H2...H7 energy storage systems with a capacity from 5.76 kWh to 20.16 kWh.
- 2.88 kWh battery capacity
- High voltage
- Long lifespan.
- Easy installation. Plug and play set-up.
- 95% charge/discharge efficiency
- Expandable system. Max. 7 modules in series.
- 90% depth of discharge
- Wide temperature tolerance
- CAN/RS485 communication
-
-
Allow sale if not in stockYes
-
Battery typeLiFePO4
-
Cycle life6000
-
Delivery up to working days10
-
Item size LxWxH mm570 x 380 x 120
-
Item weight kg32
-
ManufacturerFoxESS
-
Max charge power kWn/a
-
Max discharge power kWn/a
-
ModelCS2900
-
Nominal capacity Ah50
-
Nominal charge power kW1.44
-
Product typeEnergy storage
-
Scalablen/a
-
Total energy kWh2.88
-
Usable energy 90 percent DOD kWh2.59
-
Warranty years5
-
