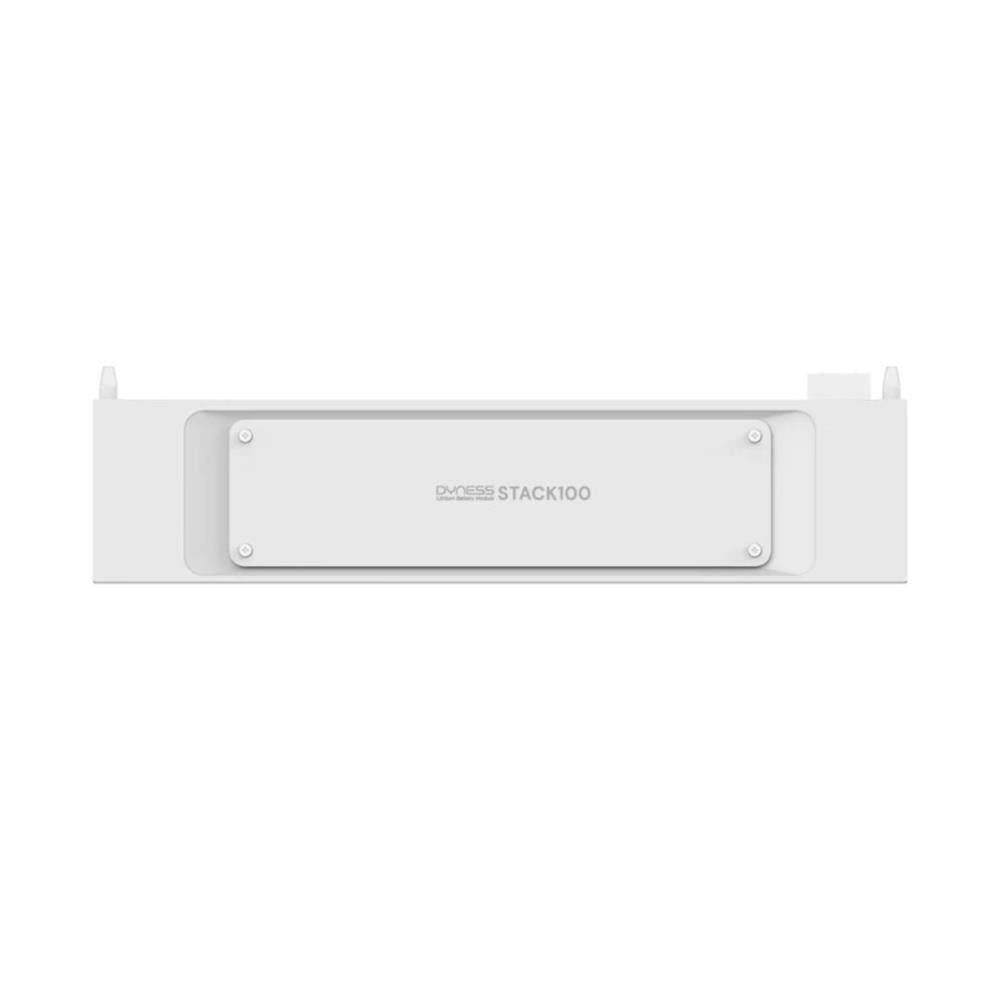

Elektros energijos kaupimo įrenginio talpa Dyness STACK100 S51100

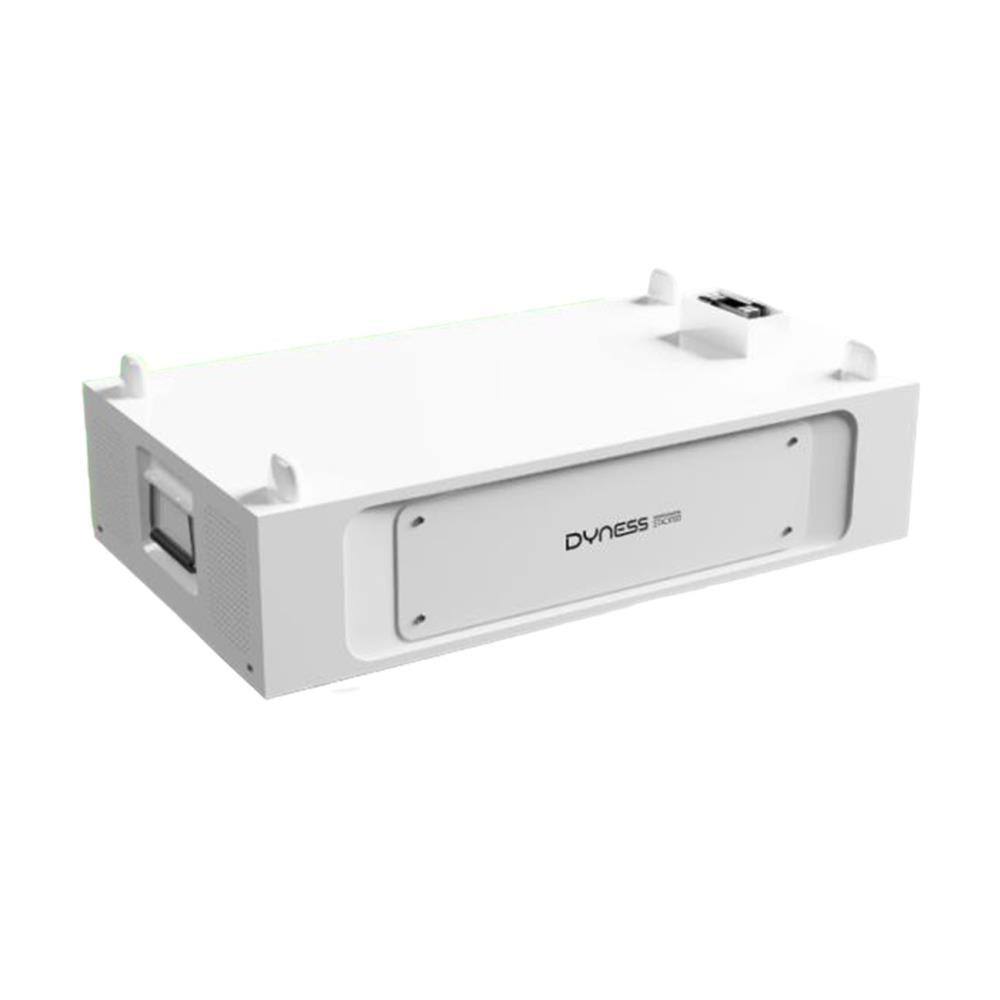

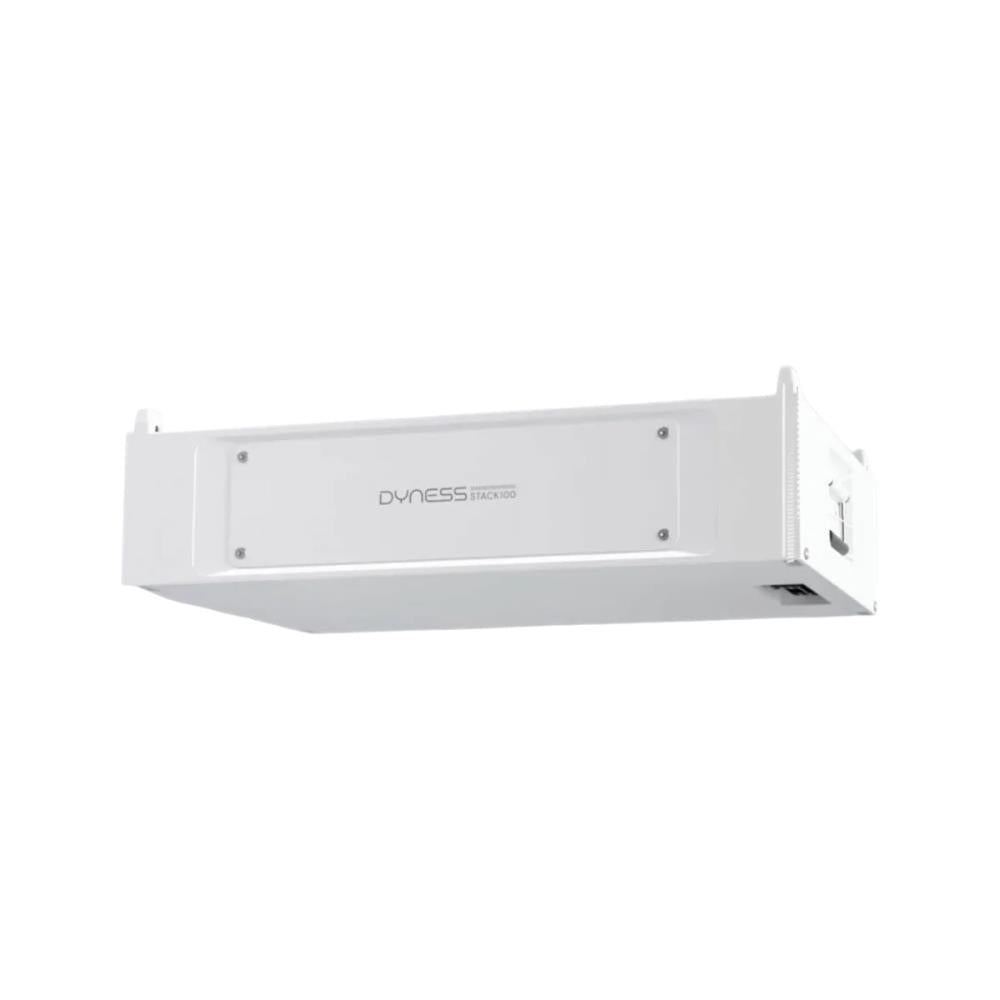

Dyness STACK100 S51100 Battery Module 5.12 kWh

S51100 battery modules and battery management system SBDU100 are used to build modern Dyness STACK100 energy storage systems with a capacity from 15.36 kWh to 76.8 kWh.

The Dyness STACK100 energy storage system is widely used in energy storage sector. It adopts modular design and can be used for residential and C&I applications. The reliable LiFeP04 technology ensures maximum safety and a longer life cycle.

• 5.12 kWh battery capacity.
• Flexible Expansion. Up to 12 clusters in parallel, 15KWh--921KWh capacity.
• Ultra Safe. Intelligent fire extinguishing system, react within 5 seconds.
• 1C Rate. Suitable for grid frequency regulation, charging stations and other scenarios, cost saving.
• Easy Installation. No wiring, rackless free stacking, plug-and-play, one cluster installation in 30min.
• Automatic Self-heating. -20°C to 55°C operating temperature (optional).

• Allow sale if not in stock
  Yes
• Battery type
  LiFePO4
• Cycle life
  8000
• Delivery up to working days
  10
• Item size LxWxH mm
  590 x 390 x 133
• Item weight kg
  47
• Manufacturer
  Dyness
• Max charge power kW
  n/a
• Max discharge power kW
  n/a
• Model
  S51100
• Nominal capacity Ah
  100
• Nominal charge power kW
  n/a
• Product type
  Energy storage
• Scalable
  n/a
• Total energy kWh
  5.12
• Usable energy 90 percent DOD kWh
  4.864 (95% DOD)
• Warranty years
  10

Gamintojo specifikacija
